Description

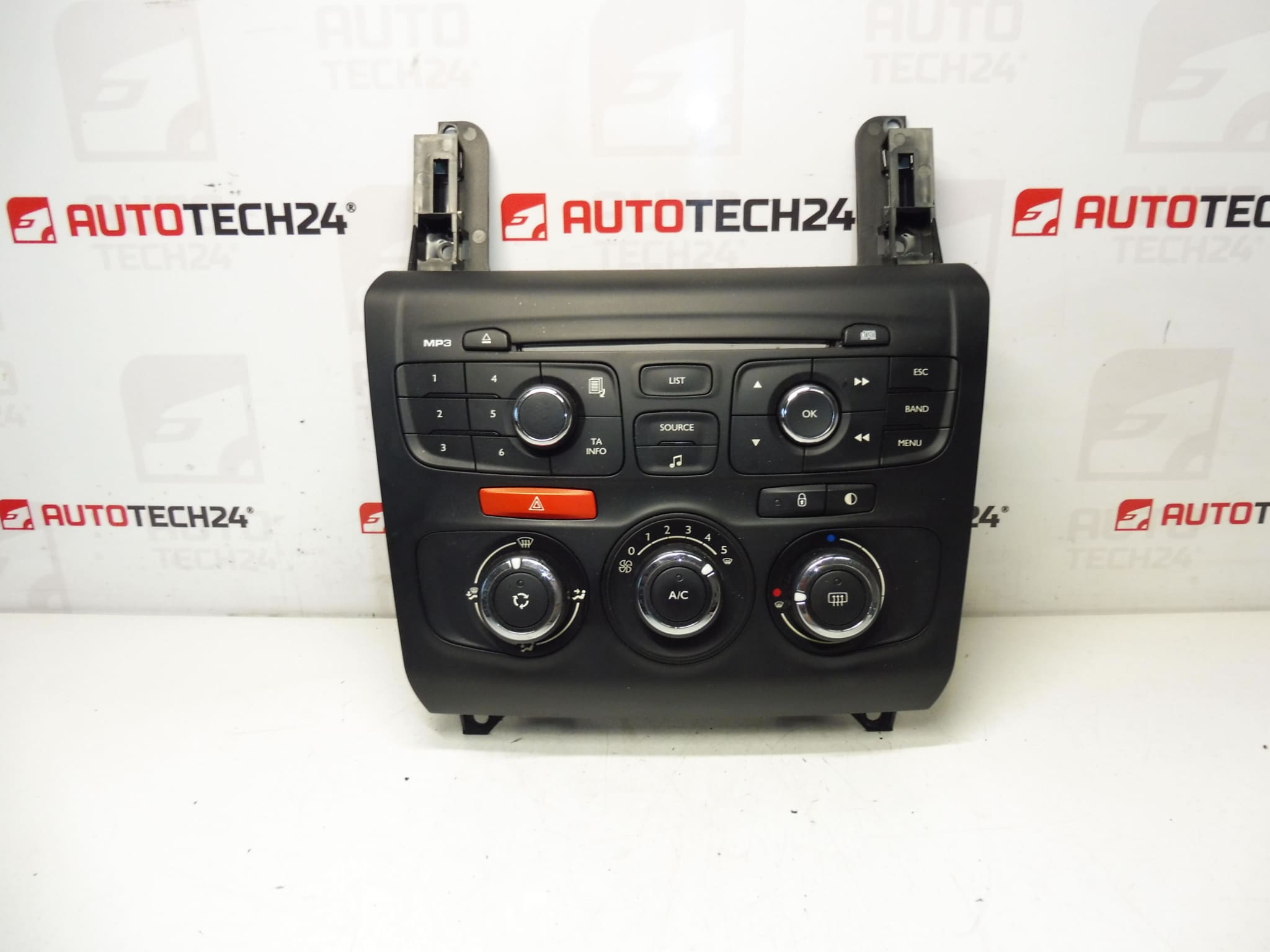

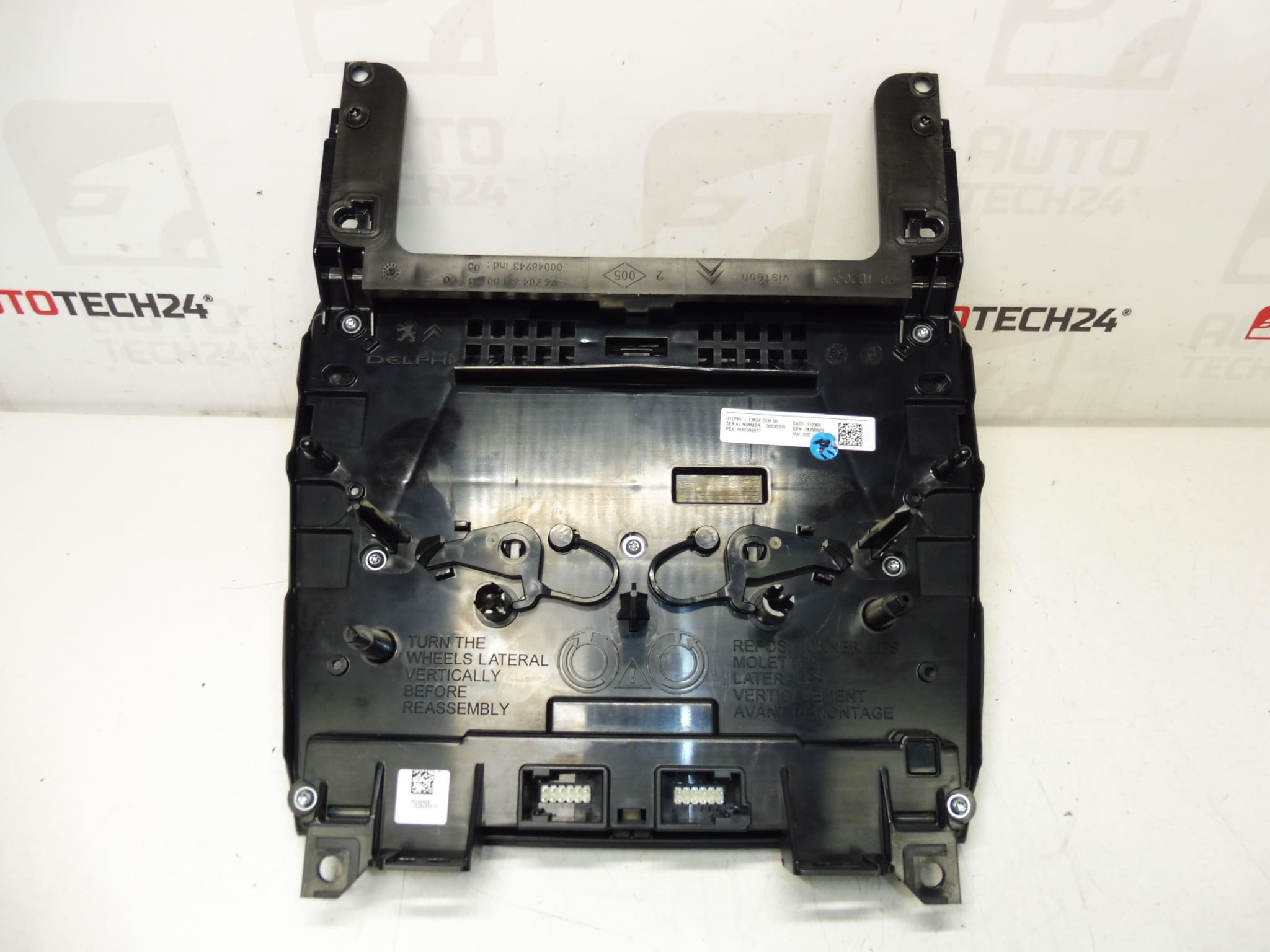

Control Of Heating, Air Conditioning And Car Radio And Navigation Citroën C4 B7. Tested – Functional.
This multifunction control panel is a direct-fit interface for the climate control, audio and navigation systems on Citroën C4 II (C4 B7) vehicles. Designed for professional workshops and DIY mechanics who expect reliable operation and straightforward replacement, the unit restores full control over heating, ventilation, air conditioning and the head unit functions when the original panel is worn or faulty. Commonly searched by part numbers, this listing includes the main OEM references to help you find the exact match for your vehicle.
Features And Function
The panel integrates controls for the HVAC system (temperature, fan speed, airflow direction and A/C), as well as front-panel controls for the radio and navigation interface. Typical elements include tactile push-buttons, rotary knobs or encoders, status LEDs/backlight and the internal printed circuit board that communicates with the vehicle CAN bus and HVAC actuators. Replacing a faulty panel restores user input functionality and display/backlight clarity.
Technical Information
- Manufacturer: Citroën (Stellantis)
- Model: Citroën C4 II (C4 B7)
- Product Codes: 9666395977, 98040763ZD, 6155HR
- Other Numbers: 6155HR | 9666395977 | 98040763ZD
How The Part Is Replaced
Replacing the multifunction panel is usually a medium-difficulty job suitable for a trained amateur or a workshop. Typical steps:
- Park the vehicle on a level surface and remove the ignition key.
- Disconnect the negative battery terminal to avoid short circuits and protect vehicle electronics.
- Carefully remove the surrounding trim and bezel from the center console using plastic trim tools to avoid damage.
- Unscrew or unclip the old panel, gently unplug the electrical connectors and remove the unit.
- Connect the replacement panel, verify connector seating and reassemble the console in reverse order.
- Reconnect the battery and test all functions: HVAC control, radio/navigation buttons, illumination and any linked features.
Installation Recommendations
- Always disconnect the battery before starting work to protect electronic modules.
- Use appropriate plastic trim tools to prevent damage to the dashboard finish and retaining clips.
- Check connector pins for corrosion or bent contacts and clean them if necessary before mating.
- After fitting, verify full operation of HVAC modes, blower control and any steering-wheel or CAN-related functions that interact with the panel.
Why The Part Fails Most Often
Failures are most commonly caused by normal wear and tear from repeated use (worn button membranes, degraded rotary encoders or faded/backlight LEDs). Other frequent causes include liquid ingress, connector corrosion, impact damage to the console, and internal PCB faults caused by heat or age. Symptoms include non-responsive buttons, intermittent control, backlight failure or incorrect HVAC responses.
Expected Service Life And Notes
Service life depends on usage and environmental conditions; panels often start showing signs of wear after several years (typical range 8–15 years). If the vehicle has water exposure or strong sunlight inside the cabin, life expectancy can be shorter. This listing includes OEM part numbers to help confirm compatibility with your Citroën C4 II series.
Compatibility And Part Numbers
Use the OEM references shown in the Technical Information to match the unit to your vehicle. Common search keywords: Citroën C4 II climate control panel, multifunction panel 9666395977, 98040763ZD, 6155HR.
