Description

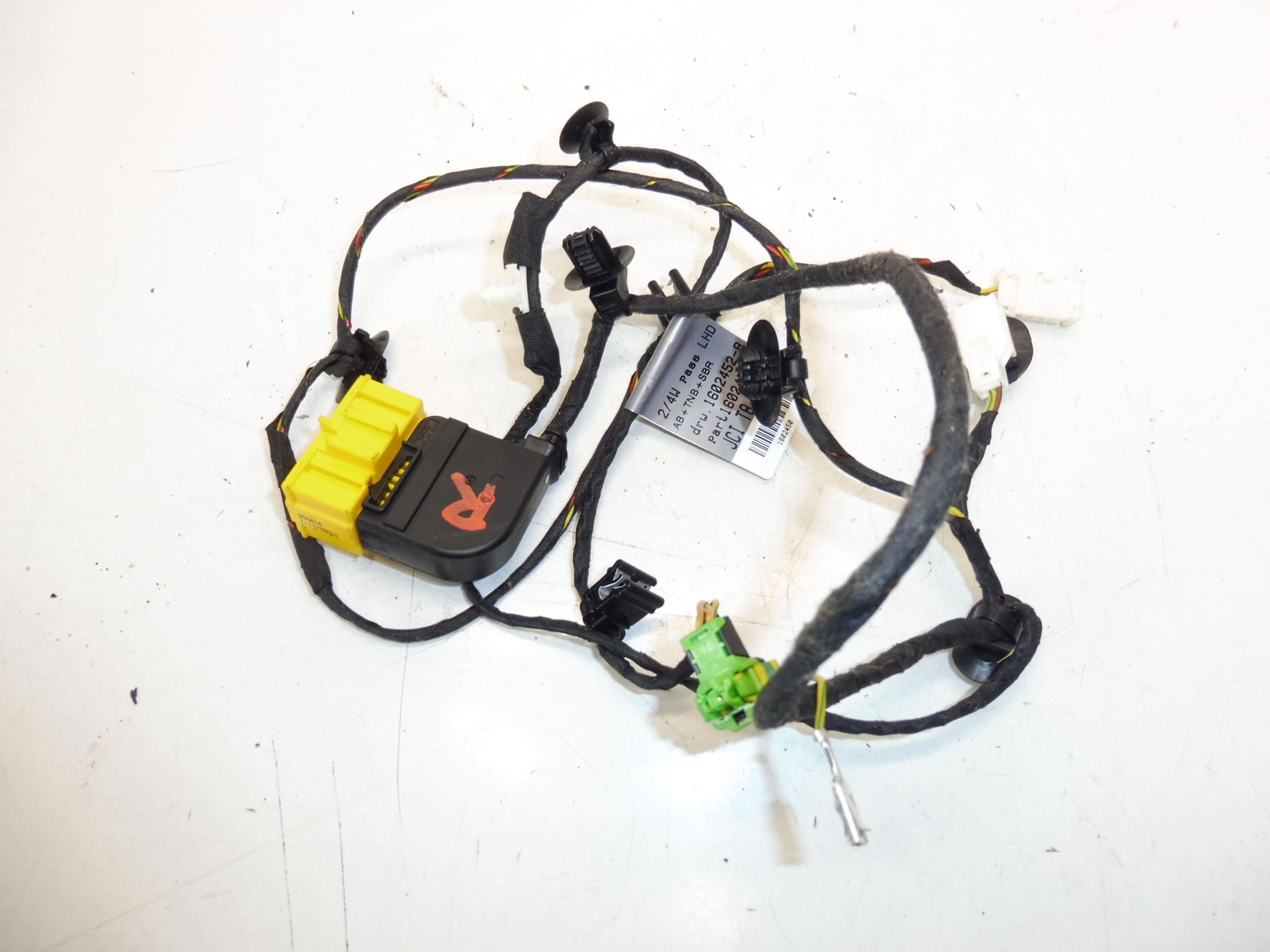

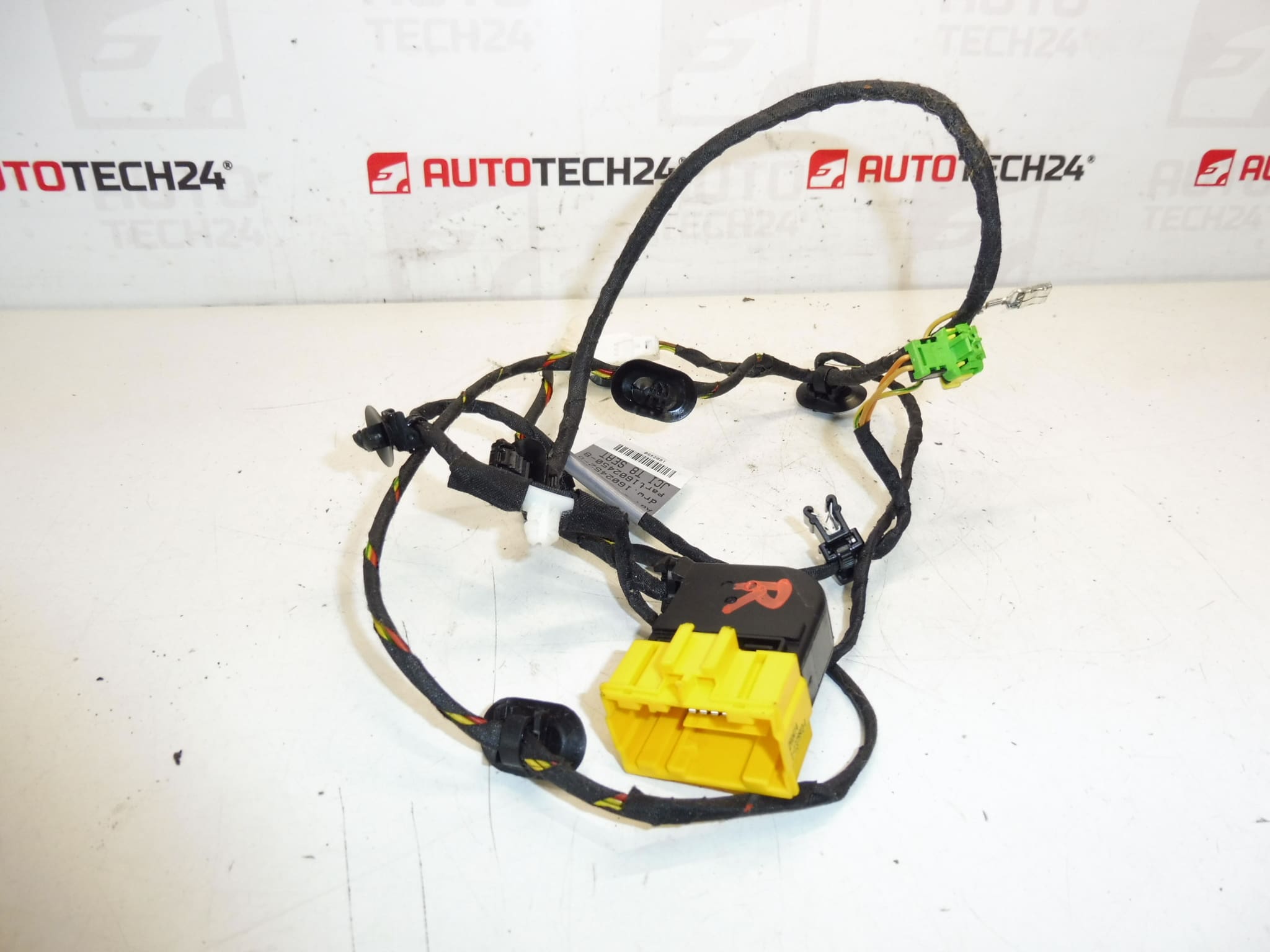

Complete front passenger seat wiring harness for Peugeot 3008 and 5008 vehicles.
This complete front passenger seat wiring harness is a direct-fit replacement designed for Peugeot 3008 I and Peugeot 5008 I models. Frequently referenced under product code 6545XT, the harness organizes and protects the electrical connections running to components integrated in the front passenger seat. It is intended for use by professional technicians and experienced DIY mechanics performing seat removal, airbag system repairs, or electrical restorations.
Function And Typical Applications
The harness provides power, ground and signal paths for seat-mounted systems. Typical circuits routed by the harness include the occupant detection sensor, passenger airbag connector, seatbelt buckle sensor, seat heating elements, lumbar adjustment and power seat motors (if fitted), and associated switchgear. Correct installation ensures reliable operation of safety and comfort features and prevents diagnostic faults related to seat circuits.
Technical Information
- Manufacturer: Peugeot (Stellantis)
- Model: Peugeot 3008 I, Peugeot 5008 I
- Product Codes: 6545XT
- Other Numbers: Not Specified
Installation Recommendations
- Always disconnect the battery before starting work and wait a few minutes to allow systems to power down.
- Remove seat trim and bolts according to the vehicle manufacturer’s procedure to avoid damage to connectors and trim clips.
- When disconnecting airbag/occupant detection connectors, use care with locking tabs and retainers to avoid breaking plastic clips.
- Route the new harness following the original path; secure it with existing clips and ties to prevent chafing during seat travel.
- After installation, torque seat fasteners to manufacturer specifications and verify all electrical functions: seat movement, heating, sensors and airbag circuits. Clear and re-check fault codes with a diagnostic tool if necessary.
- If You Are Unsure About Airbag Or Safety-Critical Connections, Have The Installation Performed Or Checked By A Qualified Technician.
How Replacement Is Carried Out
Typical replacement steps: disconnect battery, remove seat trim panels, unbolt and tilt the seat to access under-seat connectors, unplug the old harness from the vehicle harness and seat modules, remove routing clips, fit the new harness along the same routing, reconnect all plugs and secure the harness, refit the seat and trim, reconnect the battery and perform functional checks. Keep connectors clean and dry during assembly.
Why The Part Commonly Fails
Passenger seat wiring harnesses most often fail due to mechanical wear and fatigue from constant seat movement and repeated folding. Common causes include chafing against metal edges, pinching during previous repairs or reassembly, connector corrosion from moisture ingress, rodent damage, and thermal or abrasion damage. Wiring faults also frequently appear after collision damage or airbag deployment, when harnesses can be stretched or connectors disturbed.
Notes For Buyers
Include product code 6545XT when searching or ordering to increase the chance of finding the correct item. Inspect the harness for intact connectors and undamaged insulation before installation. After fitting, confirm that airbag and seat belt warning lights are extinguished and that seat adjustment and heating functions operate normally.
