Description

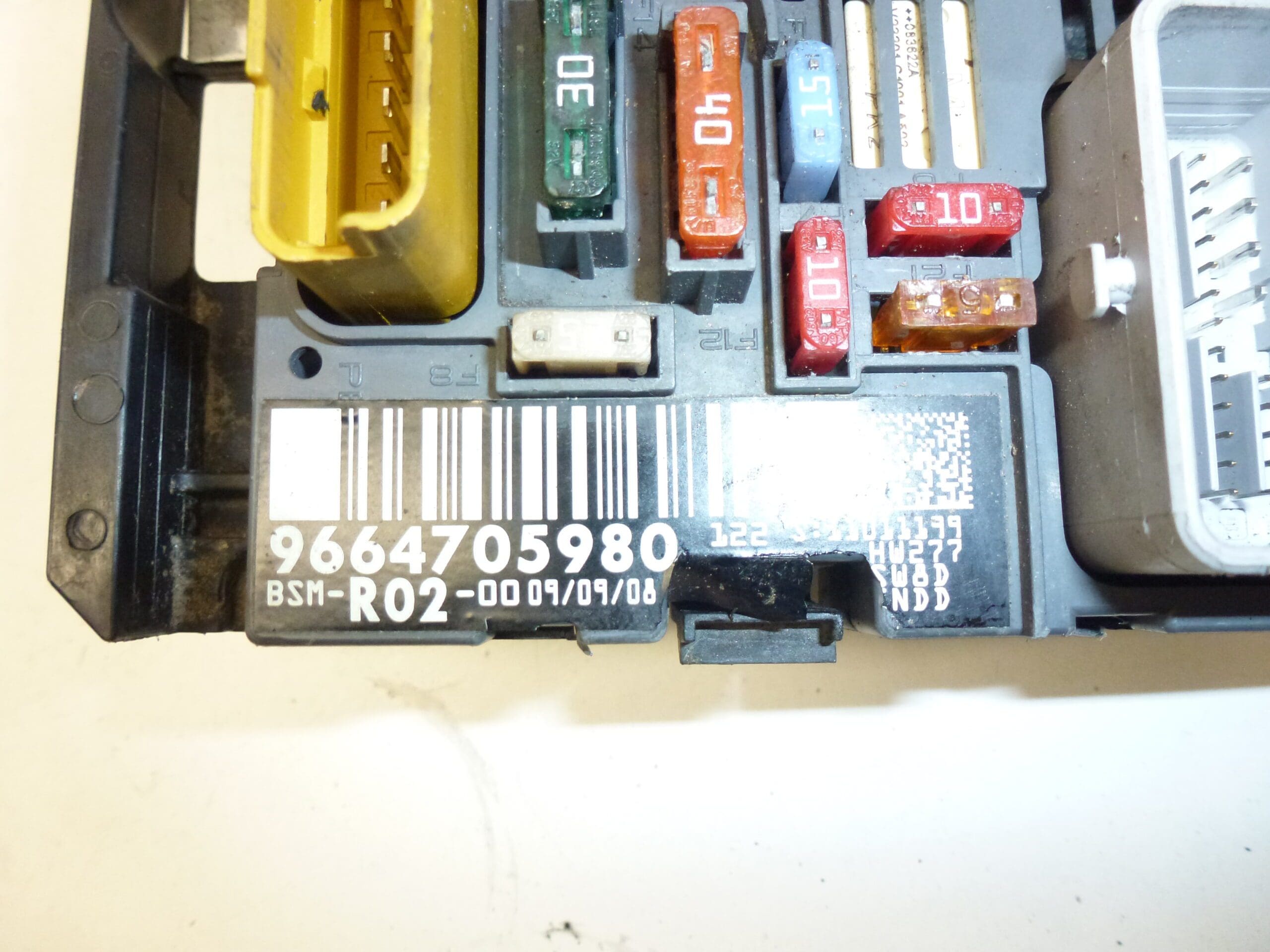

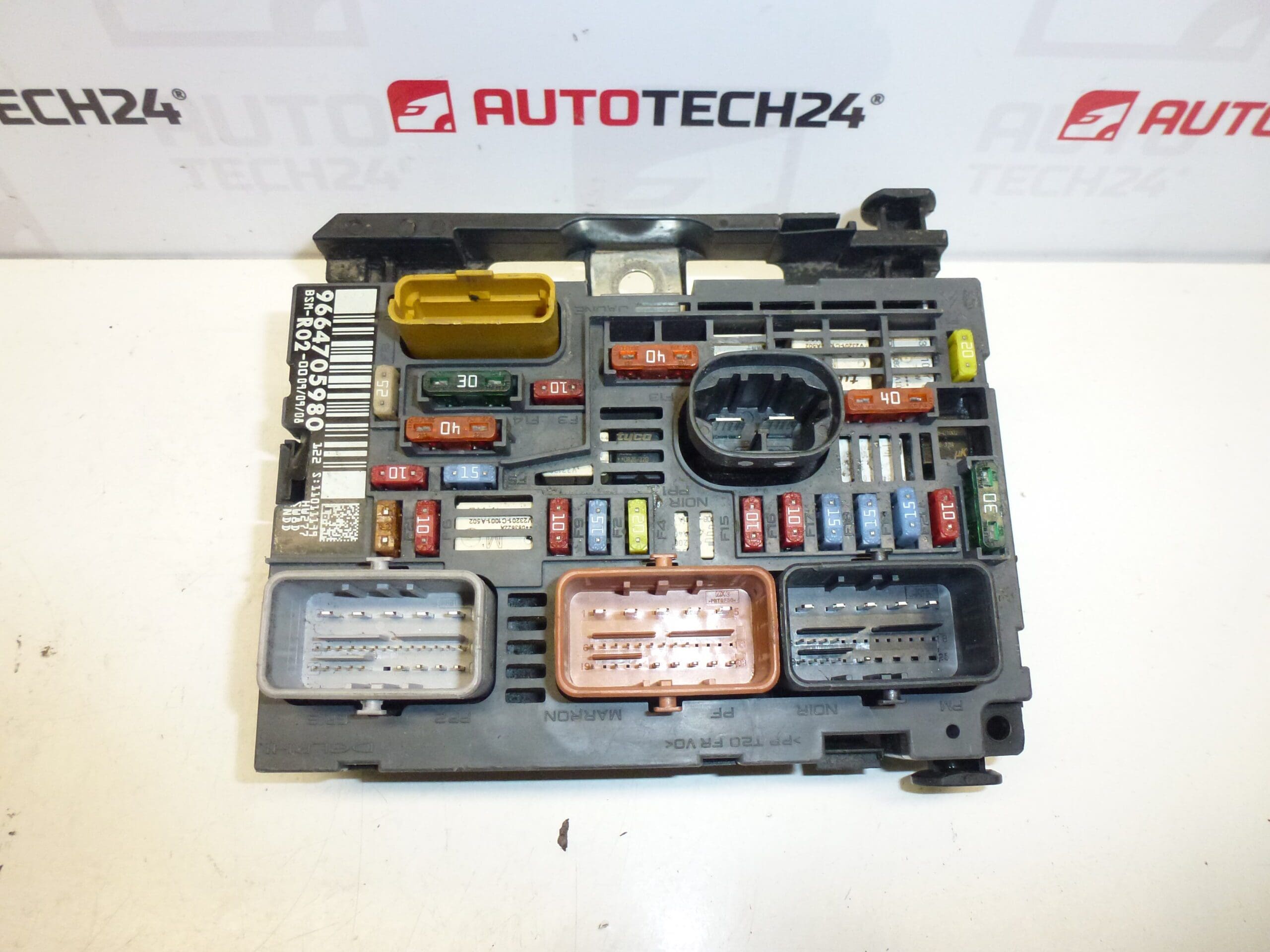

BSM R02 DELPHI control unit for Citroën and Peugeot vehicles. It may have a cracked mounting bracket on the housing, which does not affect functionality. The unit is fully functional.
High-quality used BSM R02 by Delphi, ideal for professional workshops and DIY mechanics seeking a reliable replacement body control module for compatible Citroën and Peugeot models. This unit controls multiple vehicle body electrical functions, including relays and fuse circuits, and is commonly searched by product codes (9675877980, 9807028580, 6500FQ). The module is suitable for technicians who want a straightforward swap with practical installation guidance and a clear understanding of typical failure causes.
Technical Information
- Manufacturer: Delphi
- Model: BSM R02
- Product Codes: 9675877980, 9807028580, 6500FQ
- Other Numbers: 6500.FQ, 6500FQ
Fitment
Commonly fitted to Citroën C4 Picasso and Peugeot 5008 (first generation) platforms using the 6500FQ/9675877980/9807028580 part numbering. Always verify physical appearance and connector layout against the unit being replaced.
Function
The BSM (Body System Module) R02 centralizes several body electrical functions: distribution of fused power to circuits, control of relays for lights and accessories, management of convenience circuits (wipers, central locking, etc.) and diagnostic communication with vehicle networks. Failure of the BSM can cause loss of multiple body functions or intermittent electrical faults.
How To Replace
- Disconnect the negative battery terminal before any work to prevent short circuits and risk to the module.
- Locate the BSM (typically in a fuse/relay box area; exact position depends on model and model year) and remove surrounding trim or protection panels to access the unit.
- Carefully release connectors and locking tabs. Inspect connector pins and sockets for corrosion or damage.
- Remove mounting fasteners and lift out the module. Note the orientation and routing of wiring for correct reinstallation.
- Fit the replacement unit, secure fastenings, reconnect all connectors and restore any removed trim panels.
- Reconnect the battery and perform a basic function check (lighting, wipers, central locking, instrument warnings). If fault codes persist, further diagnostics with workshop equipment may be required.
Installation Recommendations
- Always disconnect the battery before removal and installation to avoid damage to the module and vehicle electrical system.
- Handle the unit by the housing; avoid touching connector pins and electronic components. Use anti-static precautions where possible.
- Inspect and clean connector terminals and earth points. Replace damaged connectors or corroded terminals before fitting the new module.
- Ensure the module is securely mounted. A cracked mounting bracket on the housing may not affect function, but secure fastening reduces risk of vibration-related connector issues.
- After installation, check related fuses and perform a full function test of body systems. If intermittent faults or persistent error codes occur, professional diagnostic equipment is recommended.
Most Common Failure Causes
- Water Ingress And Corrosion: Moisture penetration into connectors or the housing leads to short circuits and degraded contacts.
- Electrical Surges And Poor Earthing: Voltage spikes or weak ground connections can damage internal electronics or relays.
- Thermal Cycling And Ageing: Repeated heating and cooling stresses solder joints and electronic components over time.
- Mechanical Damage: Impact or vibration can break mounting tabs or damage connectors (the unit may show a cracked mounting bracket that does not affect function).
- Connector Problems: Loose or corroded pins create intermittent faults that are often mistaken for module failure.
This BSM R02 Delphi unit is a practical replacement option for professionals and experienced DIYers. It provides a cost-effective way to restore body electrical functions when matched to the correct product codes and fitted according to recommended procedures.
