Description

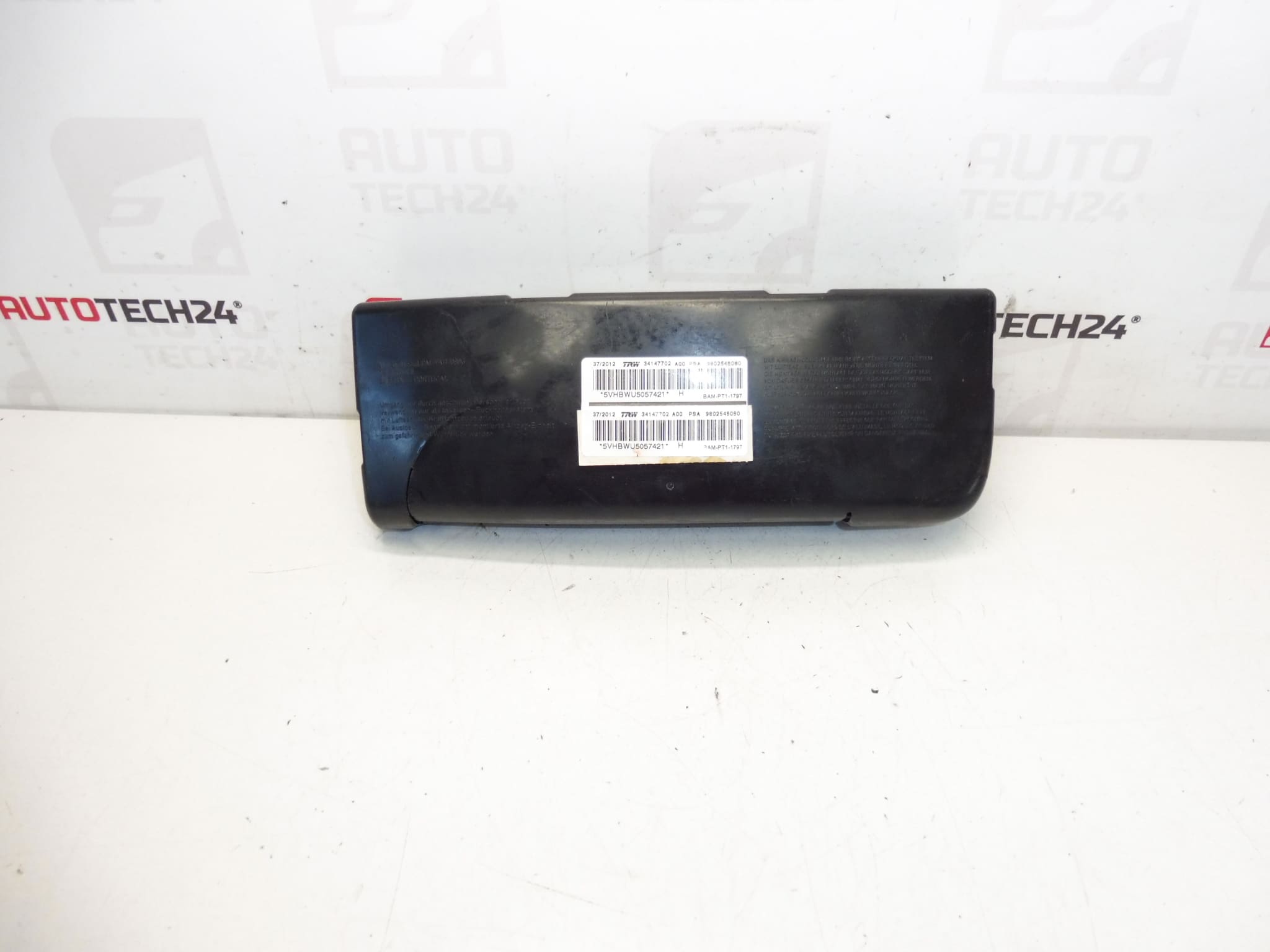

Seat airbag for CITROEN C3 cars from 2009
Driver’s seat
Part description
Used airbag for the driver’s seat designed for Citroën C3 cars. It is an important safety element of the interior, which is also often searched for by serial number 9802546080. Thanks to the clearly indicated designation, it is especially suitable for mechanics and home-builders who are looking for a specific original part for repairing or restoring the car to its original condition.
The part comes from Stellantis Citroën Peugeot cars and meets the normal requirements for replacing a damaged or activated airbag unit in the driver’s seat. When choosing, it is important to compare the marking of the part and the design of the connectors with the original piece.
Technical information
Product codes
- Product codes: 9802546080
- Model names: Citroën C3 II
Installation recommendations
Warning: this is part of the passive safety system. Care must be taken when handling. If the documents do not contain a detailed installation procedure for a specific car model, the following recommendations typically apply for replacing the airbag in the driver’s seat.
1) Before assembly
- Check if the part number 9802546080 matches the original part.
- Compare the part shape, attachment, connectors and overall design.
- Check whether the part is mechanically damaged, dirty or disturbed at the points of attachment.
- Before starting work, disconnect the battery and wait a reasonable time to minimize the risk when handling the airbag system.
2) Necessary tools and materials
- Basic set of hand tools
- Screwdrivers and bits according to the type of connecting material
- Plastic pry bar for panel removal
- Protective gloves
- Clean workspace for safe storage of dismantled parts
3) Step-by-step assembly procedure
- Turn off the ignition and disconnect the battery.
- Move the seat into a suitable position to access the attachment points and covers.
- Carefully remove the necessary covers or parts of the upholstery so as not to damage them.
- Disconnect the electrical connectors related to the disassembled part, always without using excessive force.
- Unfasten the original airbag in the driver’s seat.
- Remove the original part and compare it with the new part by number, shape and connectors.
- Insert the used airbag in place of the original part and check for proper seating.
- Attach the part using the original method of attachment.
- Reconnect the electrical connectors and check that they are properly secured.
- Reinstall any removed covers, trim or seat parts.
- Check for pinched wires or loose connectors.
- Connect the battery and perform a basic system check.
-
4) Post-assembly checks and functional test verification
- After reconnecting the battery, check that everything is properly connected and seated.
- Verify that the seat and associated interior parts are correctly assembled.
- Check the airbag system signaling on the instrument panel.
- If diagnostics are available, it is advisable to check the system and possibly delete stored faults according to the actual condition of the car.
5) The most common assembly mistakes + how to avoid them
- Battery not disconnected – always disconnect power before working.
- Part exchange – compare the part number and design.
- Connector damage – disconnect and connect connectors gently, without prying with metal tools.
- Pinched cables – check the wiring before final assembly.
- Insufficient seating of the part – after assembly, check for firm and correct fastening.
Reasons why the part is damaged
