Description

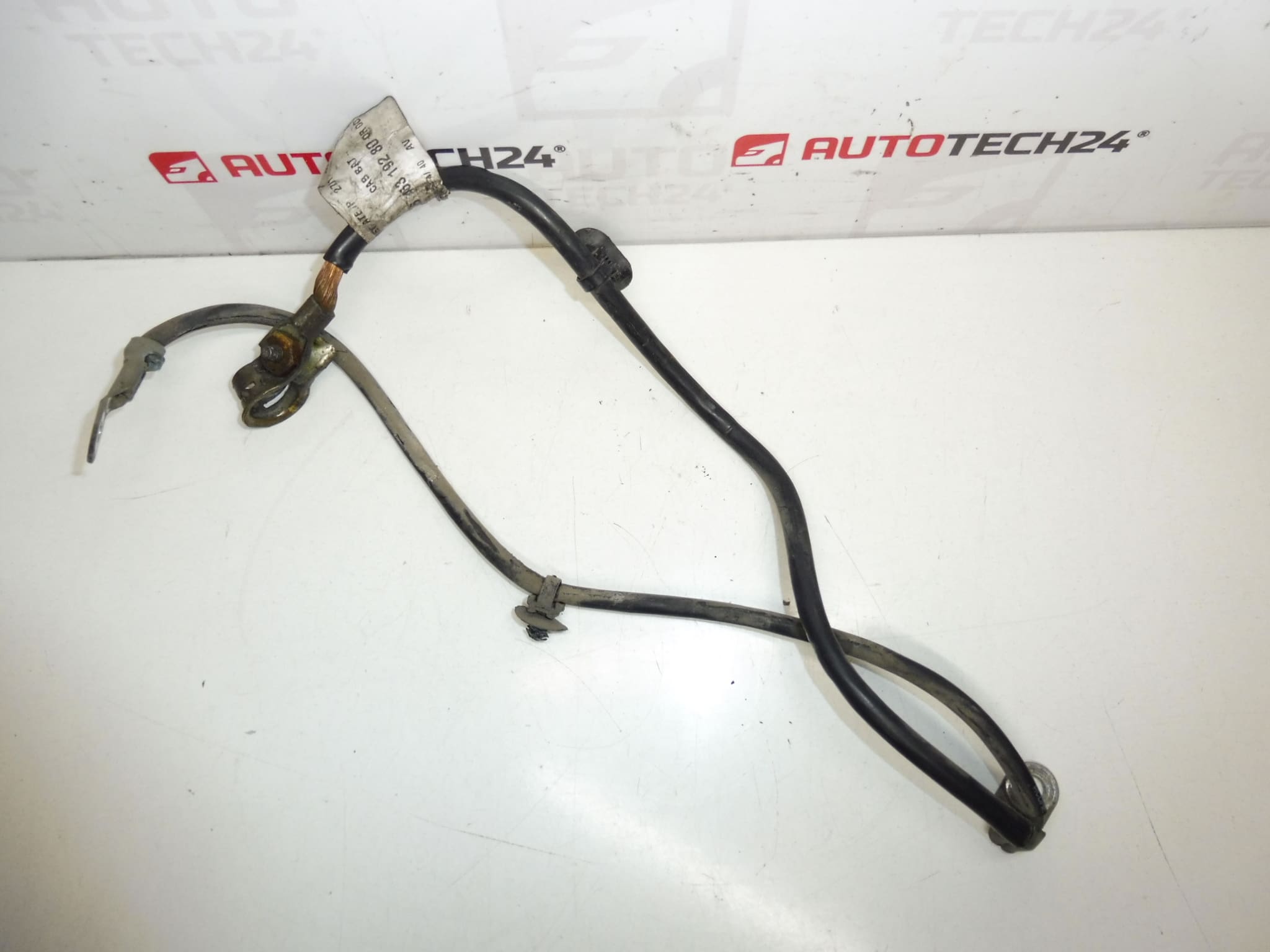

Main negative battery harness for Citroën and Peugeot 1.4 HDi 66 kW (Engine Code 8HY) Delphi injection system. Fully functional, tested.
This main negative (ground) cable assembly provides the essential ground path between the battery and chassis/engine on 1.4 HDi 66 kW Diesel applications. A reliable ground harness prevents voltage drops, reduces electrical noise, and ensures correct operation of starter, alternator and engine management electronics. The harness is an OEM-type solution used on Citroën and Peugeot vehicles equipped with the Delphi injection system.
Typical Fits: Citroën C3, Peugeot 1007 and other vehicles with the 1.4 HDi 66 kW (8HY) engine. The part is commonly searched by reference numbers listed below.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: 1.4 HDi 66 kW (Engine Code 8HY); Typical Vehicles: Citroën C3, Peugeot 1007
- Product Codes: 9646319280, 5642CJ
- Other Numbers: 9653196380, 9639978480, 5642CH
Replacement And Service Notes
Replacement of the main negative harness is a straightforward repair for a professional mechanic or a skilled DIYer. Basic steps: disconnect the battery (negative terminal first), unfasten the ground strap(s) from the battery and chassis/engine block, remove routing clips and old grommets, fit the new harness following the original routing, secure all bolted connections and clips, clean contact surfaces and apply a light coat of corrosion inhibitor or dielectric grease, then reconnect battery (connect negative last). Always ensure a clean, tight metal-to-metal contact at ground points and replace any corroded bolts or nuts.
Installation Recommendations
- Disconnect the battery negative terminal before starting work to avoid short circuits.
- Inspect and clean mating surfaces on the battery terminal, chassis and engine block; remove corrosion with a wire brush.
- Use original routing and fasteners. Secure the harness away from sharp edges, hot exhaust components and moving parts to prevent chafing.
- Replace any damaged clamps, grommets or bolts. Apply a thin layer of dielectric grease to terminals to limit future corrosion.
- After installation, check starter/charging system operation and measure ground resistance if available to verify proper grounding.
Most Common Failure Reasons
The main causes of failure are corrosion at the battery terminal or grounding points (battery acid exposure accelerates oxidation), mechanical wear from vibration or chafing, heat damage from proximity to exhaust or turbo components, and broken conductor strands due to repeated flexing. Loss of a secure ground commonly results in slow cranking, erratic sensor readings, charging faults or warning lights on the dash.
Choosing the correct harness and replacing worn ground connections promptly restores electrical reliability and prevents related component damage.
