Description

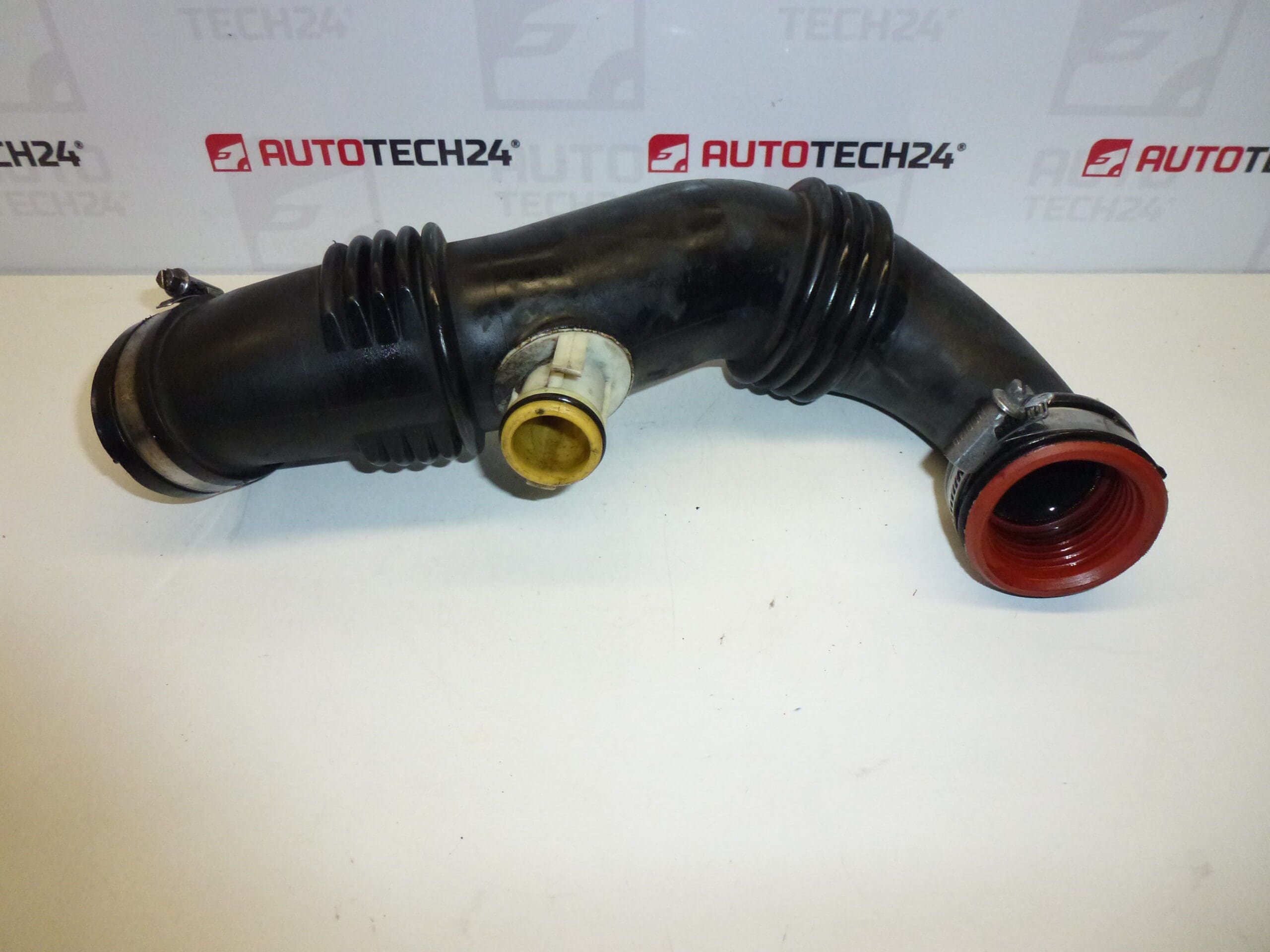

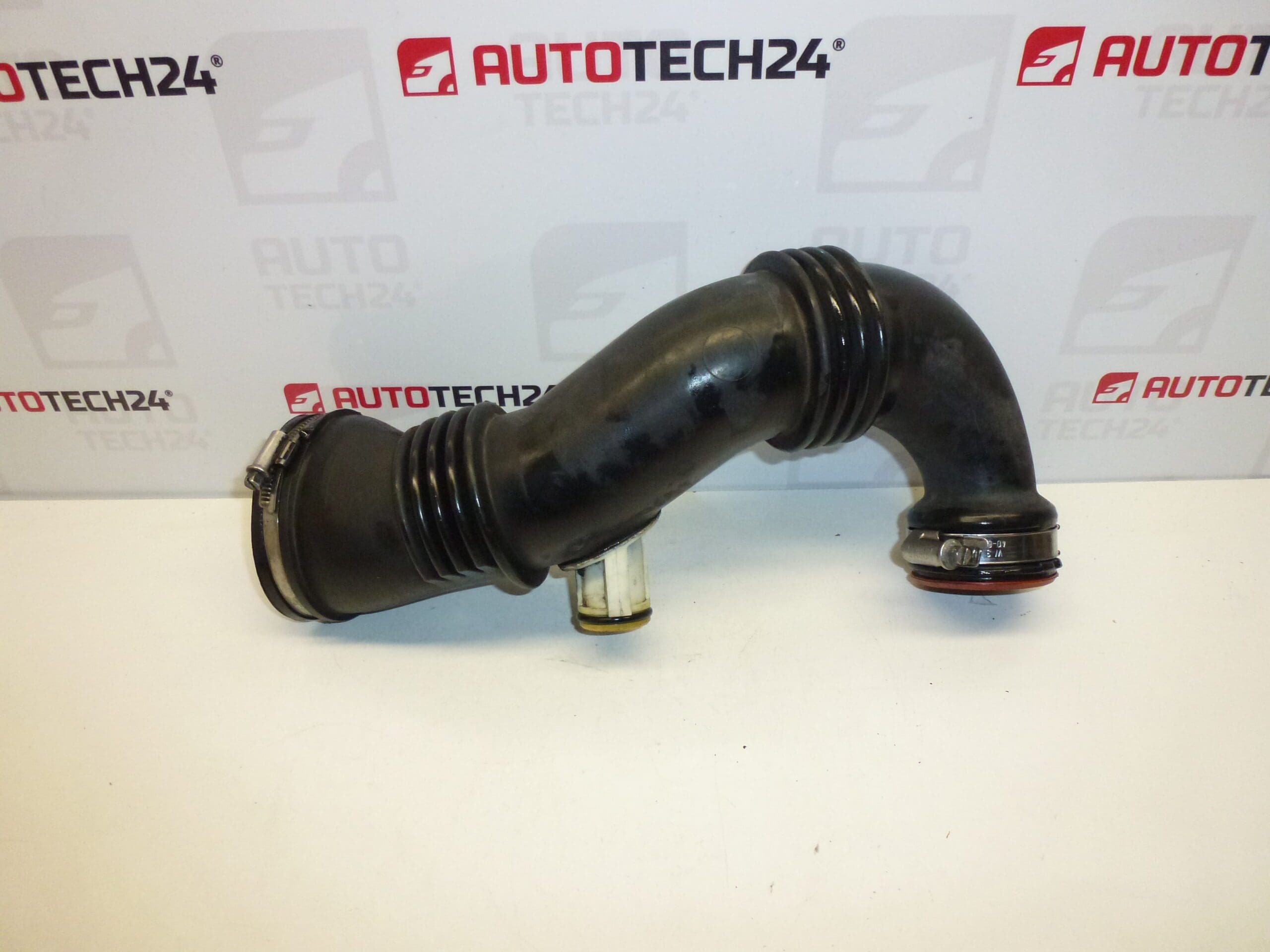

Turbo intake hose, air inlet connection for 1.6 HDi engines for Citroën and Peugeot vehicles
Overview
High-quality replacement turbo intake hose designed for 1.6 HDi diesel engines used in various Citroën and Peugeot models. This turbo inlet hose routes compressed air from the turbocharger/intercooler to the engine intake, ensuring stable boost delivery and engine performance. Ideal for professional workshops and DIY mechanics searching by OE numbers (9656953680, 143453, 1434E1).
Applications
Compatible with a range of vehicles equipped with the 1.6 HDi engine, including but not limited to:
- Citroën Berlingo
- Citroën C2
- Citroën C3
- Citroën C3 Picasso
- Citroën C4
- Citroën C5 / C5 X7
- Citroën Xsara Picasso
- Peugeot 207
- Peugeot 307
- Peugeot Partner
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: 1.6 HDi engines; see vehicle list above
- Product Codes: 9656953680, 1434E1
- Other Numbers: 143453, 14340
Function
The turbo intake hose connects the turbocharger and/or intercooler to the engine intake manifold. It must withstand boost pressure, temperature fluctuations and exposure to engine oil vapors. A secure, undamaged hose is essential for maintaining correct air mass flow, turbo efficiency and engine drivability.
Most Common Reasons For Failure
- Aging and material fatigue from repeated heat cycles leading to cracks or splits.
- Oil contamination from turbo seals or crankcase ventilation, which softens or degrades the rubber.
- Loose, broken or incorrectly fitted clamps causing blow-off or air leaks.
- Physical damage from contact with adjacent components or debris.
- Internal collapse or distortion under vacuum when the hose walls weaken.
Replacement Procedure
Recommended general steps for replacing the turbo intake hose (for experienced mechanics):
- Allow the engine to cool. Relieve any residual boost pressure by briefly cranking or following manufacturer procedure.
- Loosen and remove clamps at both ends of the hose. Remove any attached sensors or brackets carefully.
- Inspect turbo outlet, intercooler and intake mating surfaces for damage, oil residue or debris; clean as necessary.
- Fit the new hose in the correct orientation, ensuring full seat on the coupling lips.
- Install new or inspected clamps and tighten evenly—avoid overtightening which can damage the hose.
- Start the engine, check for boost leaks and proper idle. Road test under load and recheck clamps.
Installation Recommendations
- Always replace worn or corroded clamps with OE-style or quality worm/constant-tension clamps.
- Inspect related components: intercooler pipes, turbo outlet flange, and crankcase ventilation hoses for oil leaks.
- Do not overtighten metal clamps—use even pressure to avoid cutting into the hose.
- If oil contamination is present, trace and remedy source (turbo seals, PCV system) before installing the new hose.
- Perform a boost/leak test after installation to confirm integrity under pressure.
Customers often search using OE numbers: 9656953680, 143453, 1434E1. Use these codes to match fitment quickly.
