Description

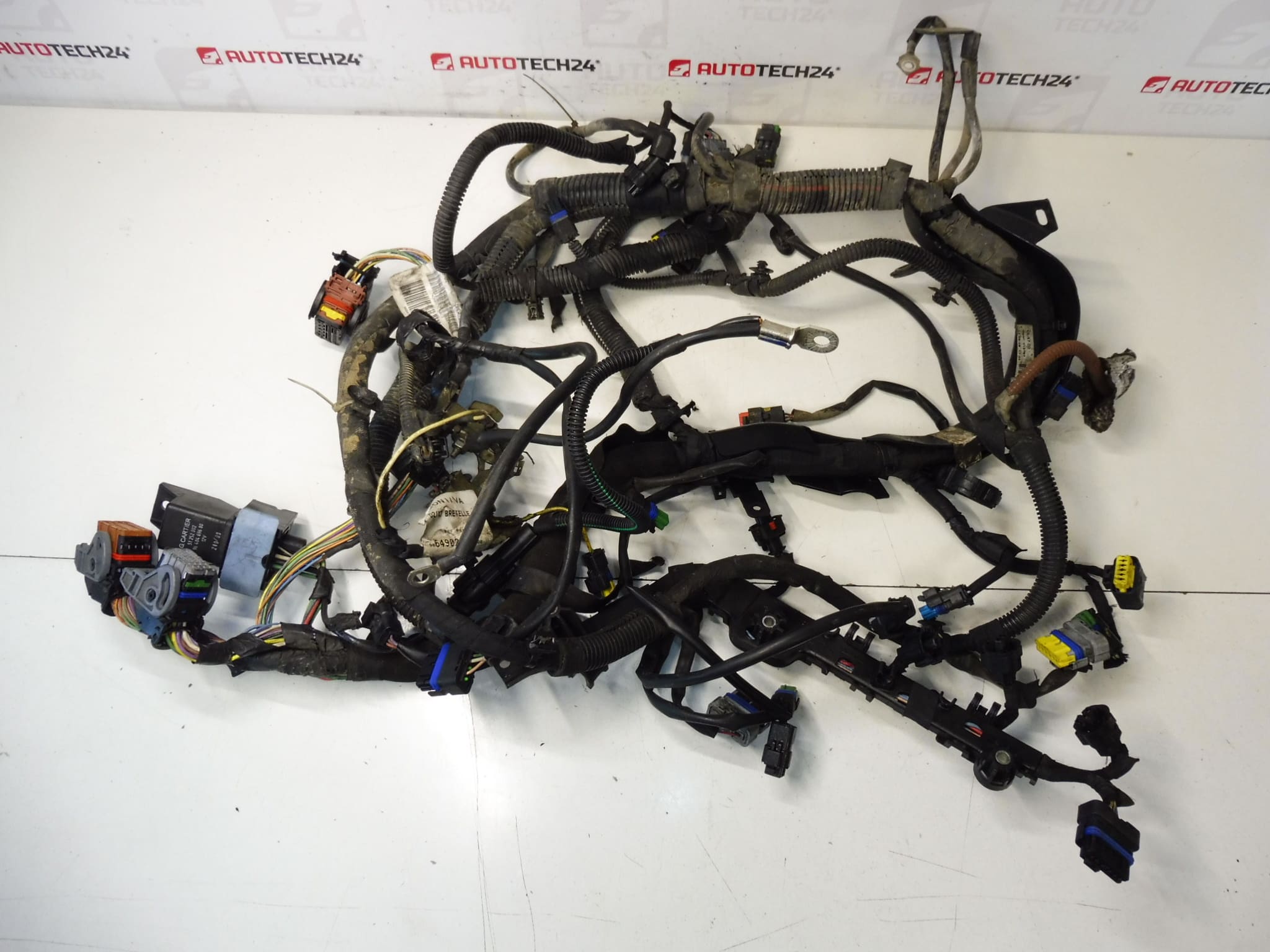

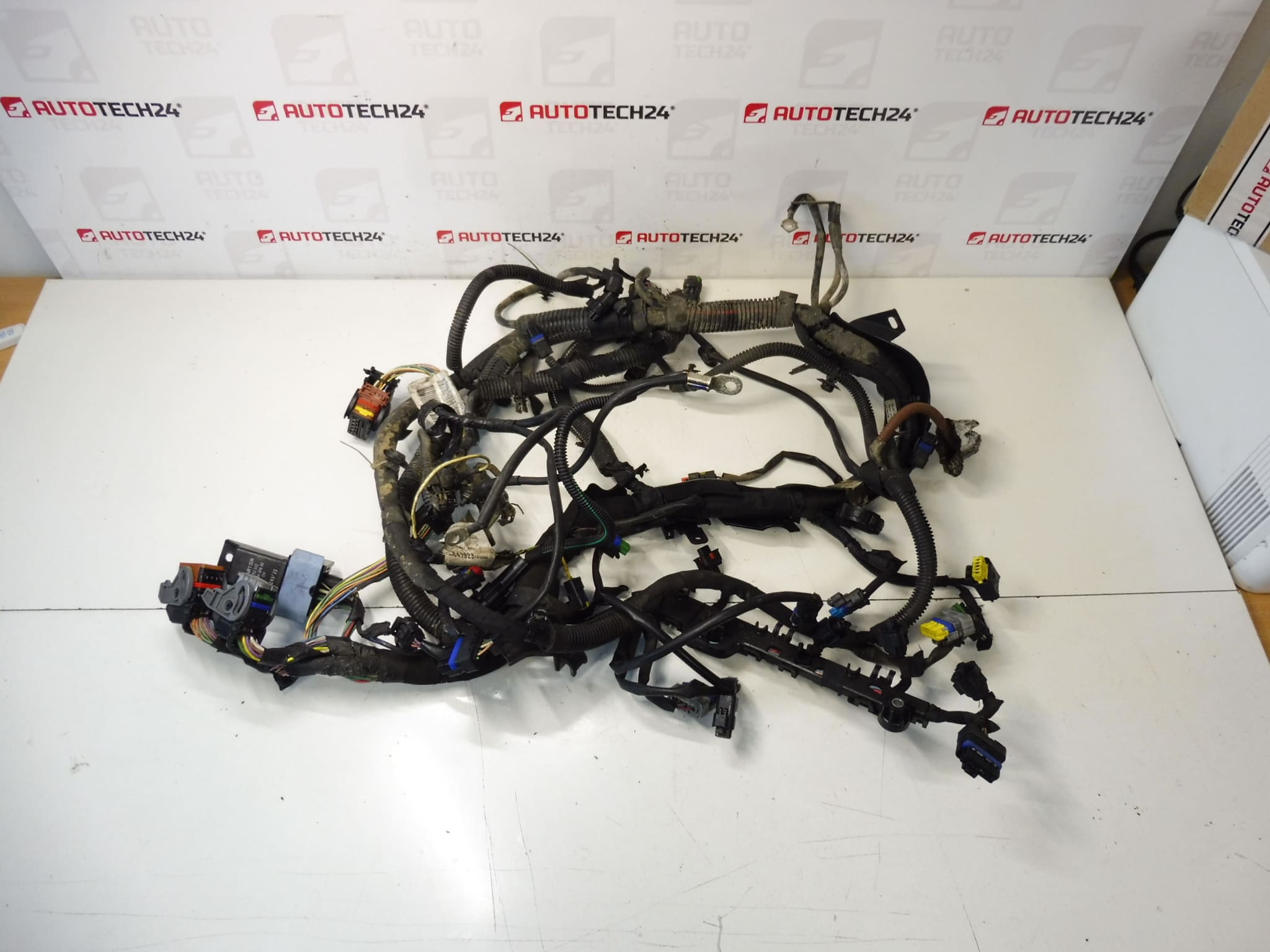

Complete engine wiring harness for Citroën C5 X7 and Peugeot 407 with 1.6 HDi 9HZ engine.
Overview
This complete engine wiring harness is designed for the 1.6 HDi (engine code 9HZ) diesel engines used in Citroën C5 X7 and Peugeot 407 models. The harness provides all necessary electrical connections between the engine control unit (ECU) and engine components such as injectors, sensors, actuators and grounding points. It is supplied with original product references 9664740580 and 6569TQ for easy identification and replacement.
Function
The engine wiring harness transmits power and signal lines essential for the operation of the common-rail fuel system and associated engine management. It links critical components including injector connectors, crankshaft and camshaft sensors, temperature and pressure sensors, solenoids and the ECU connector. Proper routing and secure connections ensure reliable communication and stable engine performance.
Suitable Models
Direct fit for:
- Citroën C5 X7 (1.6 HDi, 9HZ)
- Peugeot 407 (1.6 HDi, 9HZ)
How To Replace
Replacement should be performed by a trained technician or an experienced DIY mechanic. Typical replacement steps:
- Disconnect the negative battery terminal before any work to avoid short circuits and ECU damage.
- Gain access to the engine wiring harness by removing intake ducts, engine covers and any obstructing components as required.
- Label or photograph each connector to ensure correct reconnection. Unclip the harness from brackets and remove retaining clips.
- Disconnect connectors from injectors, sensors and the ECU. Carefully release any sealed plugs to avoid damaging terminals.
- Fit the new harness in reverse order: route and secure with clips, reconnect all sensors and injectors, and verify that connectors are fully seated and locked.
- Reconnect the battery and perform a full system check. Clear any fault codes and run the engine to confirm correct operation.
Installation Recommendations
- Always disconnect the battery before starting work and follow the vehicle manufacturer procedures to prevent damage to electronic components.
- Use appropriate tools for releasing sealed connectors and avoid pulling wiring directly to prevent internal damage.
- Replace any damaged clips or grommets to prevent chafing and water ingress.
- After installation, inspect for fuel or oil contamination and ensure harness routing keeps wires clear of hot surfaces and moving parts.
Most Common Failure Reasons
Engine wiring harness failures are usually caused by external factors rather than inherent defects. Common causes include:
- Heat and vibration that degrade insulation and connector integrity over time.
- Oil, coolant or other fluid contamination that accelerates connector corrosion.
- Mechanical damage from chafing against engine components or from poor previous routing.
- Rodent chewing or accidental cuts during maintenance.
- Poor sealing or water ingress causing intermittent electrical faults.
Technical Information
- Manufacturer: Stellantis
- Model: Citroën C5 X7; Peugeot 407
- Product Codes: 9664740580; 6569TQ
- Other Numbers: Engine Code 9HZ
Why Choose This Part
Using the correct wiring harness with the original product codes ensures reliable connections for engine management and reduces troubleshooting time. The listed references 9664740580 and 6569TQ make it easy to match the harness to your vehicle. Ideal for workshops and competent DIY mechanics performing engine electrical repairs or replacements.
Order Information
Searchable by part numbers 9664740580 and 6569TQ. Add this complete engine wiring harness to your cart to restore full electrical functionality to the 1.6 HDi 9HZ engine in Citroën C5 X7 and Peugeot 407 vehicles.
