Description

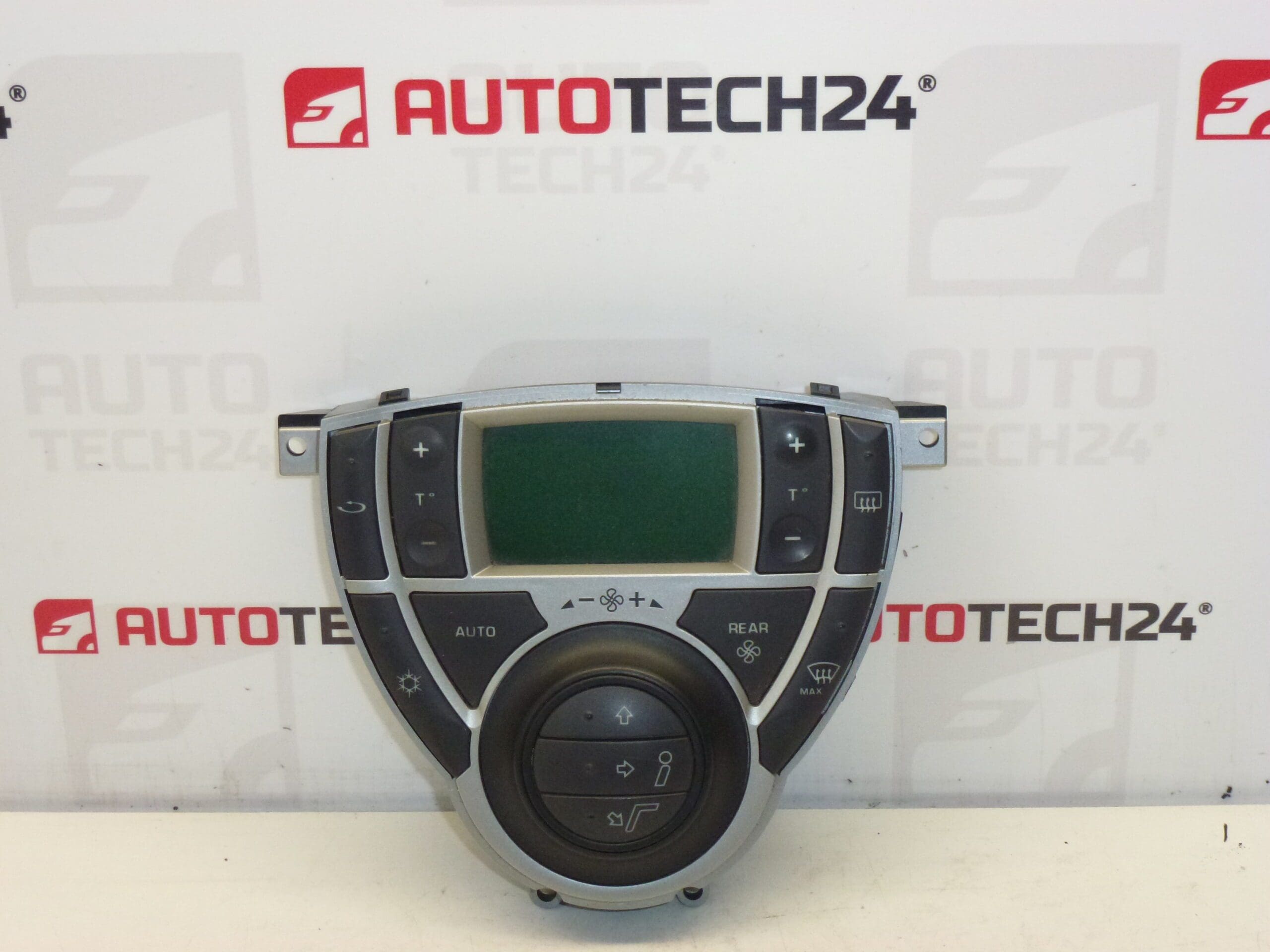

Heating and Climate Control Unit For Peugeot 807 And Citroën C8 Up To 2005
This replacement heating and air-conditioning control unit is compatible with Peugeot 807 and Citroën C8 models up to 2005. Ideal for professional workshops and DIY mechanics, the unit restores user control over temperature, fan speed, air distribution and air-conditioning engagement. Commonly searched by part numbers 14874990YR, 6451KJ, 6451KK or 9140010393, this controller is a direct-fit component that helps solve intermittent control loss, unresponsive buttons or faulty displays.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Peugeot 807 (up to 2005), Citroën C8 (up to 2005)
- Product Codes: 14874990YR, 6451KJ, 6451KK
- Additional Numbers: 9140010393, NFP
Function And Application
The control unit manages cabin temperature settings, blower fan speeds, air distribution (vents/floor/defrost), recirculation mode and A/C request signals to the compressor clutch. It translates user inputs (knobs, sliders or buttons) into electrical commands for HVAC actuators and the vehicle network, and drives the on-board display and indicator lights. Proper operation is essential for cabin comfort and correct climate system behaviour.
Common Faults And Causes
- Wear Of Switches And Potentiometers: Frequent physical use causes mechanical wear or loss of contact, leading to intermittent or non-responsive controls.
- Display Or Backlight Failure: Aging displays or failed LEDs can make settings unreadable.
- Corroded Connectors And Water Ingress: Moisture reaching the unit or connector corrosion causes poor connections or short circuits.
- Cold Solder Joints And PCB Fatigue: Thermal cycling can create micro-cracks on solder joints, producing intermittent faults.
- External Related Failures: Faulty blower motor, resistors or actuators may be misdiagnosed as control unit faults — check associated components.
Replacement Procedure
Typical replacement steps for experienced technicians or competent DIY mechanics:
- Disconnect The Battery Before Starting Work To Avoid Short Circuits And Protect Electronics.
- Remove Trim Panels Around The Center Console Carefully Using Trim Tools To Prevent Damage.
- Unscrew The Fasteners Securing The Control Unit (Often Phillips Or Torx) And Slide The Unit Out Gently.
- Unplug All Electrical Connectors By Releasing Their Tabs; Inspect Pins For Corrosion Or Damage.
- Install The Replacement Unit, Reconnect Connectors And Refit Fasteners And Trim Panels.
- Reconnect The Battery And Verify All Functions: Fan Speeds, Temperature Regulation, A/C Engagement, Recirculation And Display Operation.
Installation Recommendations
- Always Disconnect The Battery Before Removing The Unit.
- Use Appropriate Trim Tools To Avoid Breaking Dash Clips Or Surrounding Plastic.
- Inspect Connectors And Wiring For Heat Damage Or Corrosion; Clean Contacts And Apply Dielectric Grease If Needed.
- Avoid Excessive Force When Removing Or Inserting Connectors; Ensure Retaining Clips Are Fully Engaged.
- After Installation, Cycle Through All Modes To Confirm Correct Communication With HVAC Actuators.
Why This Part Fails Most Often
High usage, long-term exposure to temperature changes and humidity, combined with ageing plastics and electronic components, are the primary reasons these control units fail. Repeated mechanical action on knobs and buttons wears contacts, while moisture or condensation can corrode connectors and PCBs. Solder joint fatigue from thermal cycling is another frequent issue on older vehicles.
If you are searching by part number, try any of the listed codes (14874990YR, 6451KJ, 6451KK, 9140010393) to quickly locate the correct unit for Peugeot 807 and Citroën C8 models up to 2005. Suitable for professional fitment or confident DIY replacement.
