Description

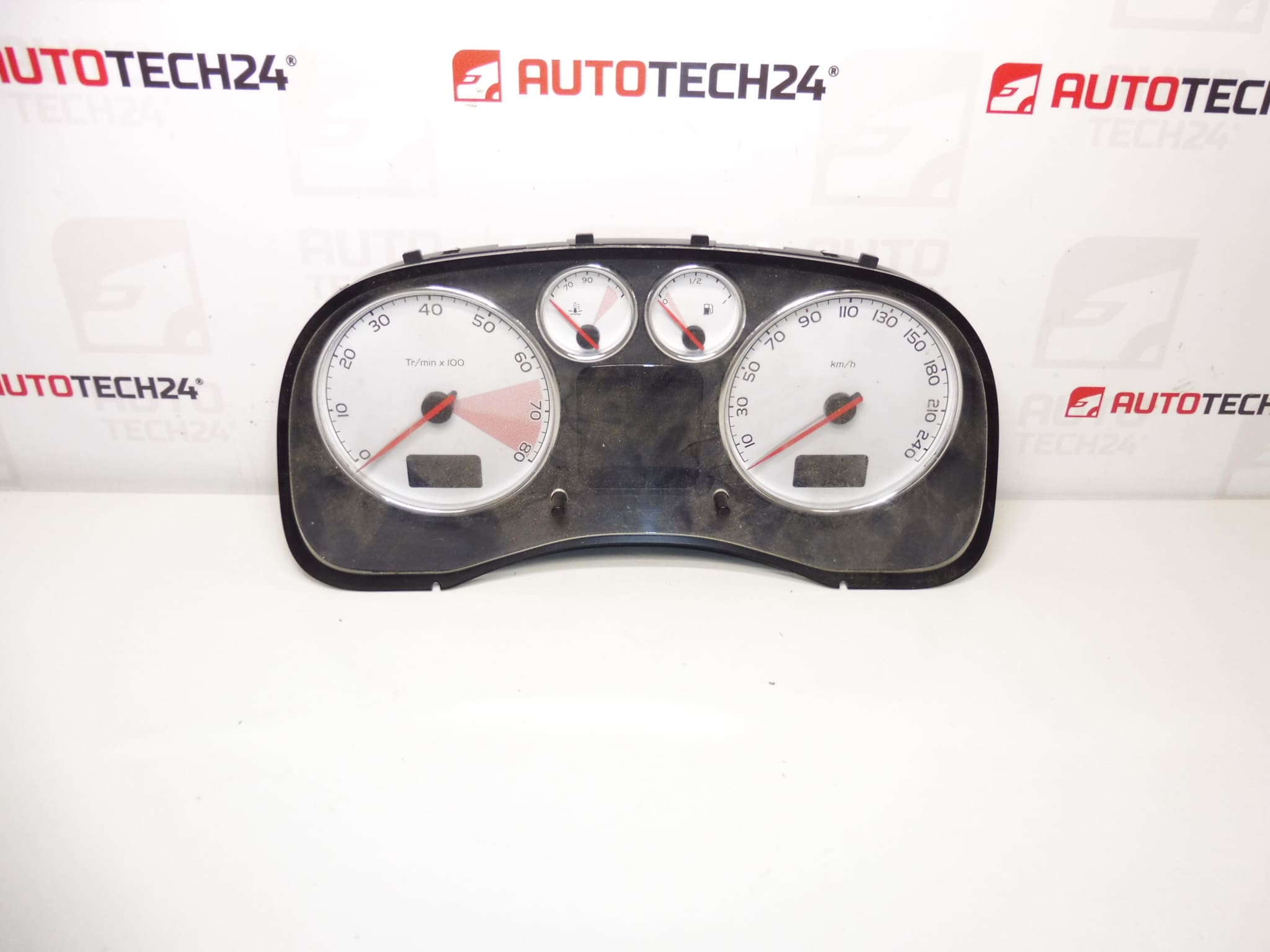

Speedometer for Peugeot 307 and 307 CC with 2.0 16V engine. Removed from a vehicle with 149,000 km.
This instrument cluster is a direct-fit speedometer assembly for Peugeot 307 models equipped with the 2.0 16V petrol engine. Ideal for professional workshops and experienced DIYers, the unit is commonly searched and identified by part numbers such as 9655476680, P9655476680, 6103F4 and 6106J1. The cluster displays vehicle speed, engine revolutions, odometer reading (149,000 km shown), warning lights and primary gauges, making it a key component for safe and legal operation.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Peugeot 307 (Phase 1 and Phase 2), Peugeot 307 CC

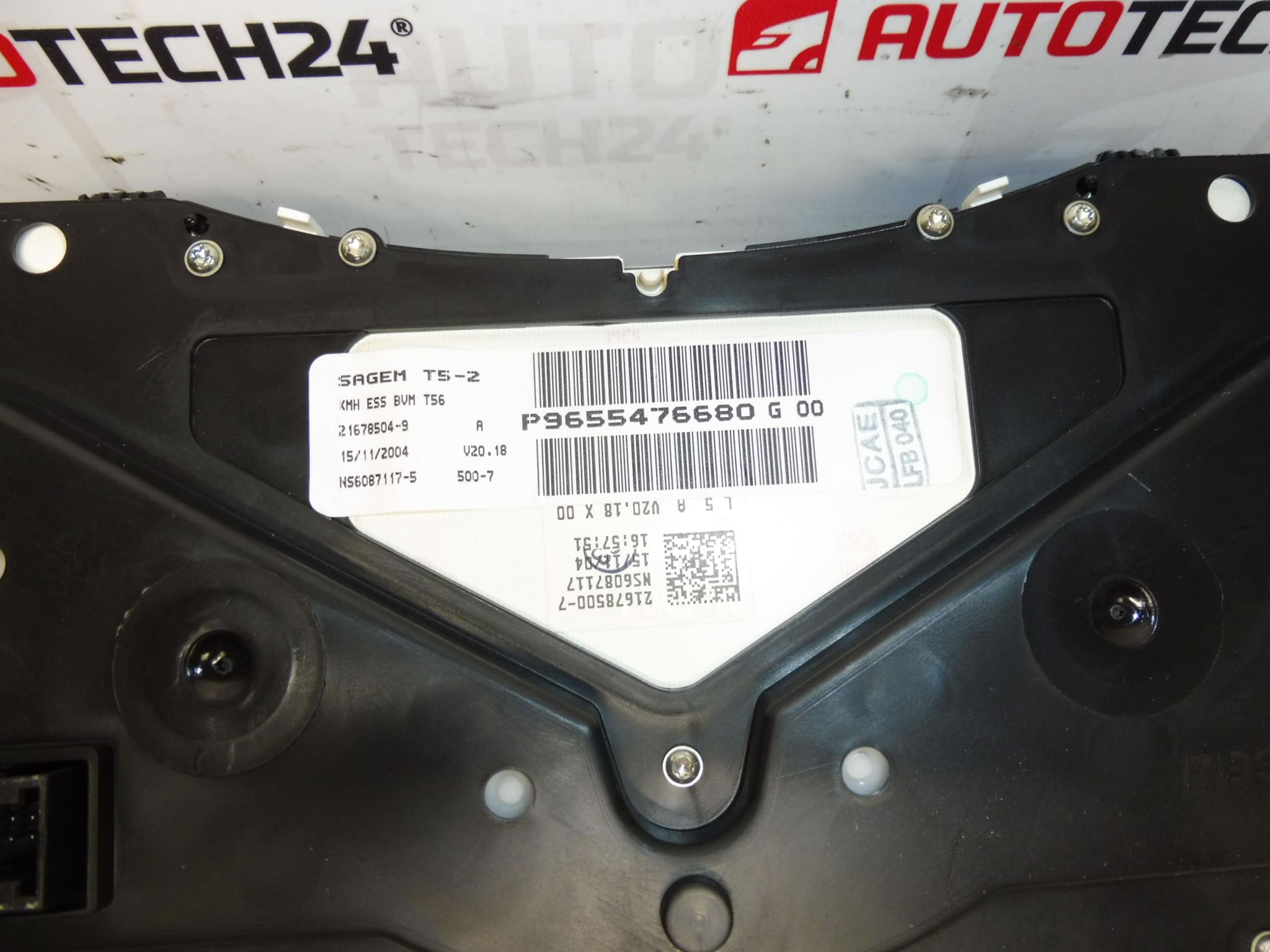

- Product Codes: 9655476680, P9655476680
- Additional Numbers: 6103F4, 6106J1, G 00, NFP
Compatibility And Fitment
Fits Peugeot 307 variants and 307 CC versions that use the same instrument cluster family for the 2.0 16V petrol engine. Confirm fitment by matching the part numbers printed on the cluster (9655476680 / 6103F4 / 6106J1). This unit is frequently sought by part number when ordering replacement clusters.
Function And Features
- Speedometer and Tachometer
- Odometer And Trip Meter (Displays 149,000 km)
- Warning Lights (Engine, ABS, Airbag, Charging, etc.)
- Fuel And Temperature Gauges (where fitted)
- Backlighting And Gauge Stepper Motors
How To Replace
Replacement requires basic workshop tools and moderate experience. Typical removal and installation steps:
- Disconnect The Negative Battery Terminal And Wait A Few Minutes To Prevent Electrical Damage.
- Remove Steering Column Trim And Surrounding Fascia Panels According To Vehicle Procedure.
- Unscrew The Retaining Fasteners Securing The Cluster And Carefully Pull The Unit Forward.
- Unplug All Electrical Connectors (Do Not Force Or Bend Pins). Inspect Connectors For Corrosion Or Damaged Wires.
- Install The Replacement Unit By Reversing The Procedure. Reconnect The Battery Last.
- After Installation, Verify Operation Of Speedometer, Tachometer, Odometer, Warning Lights And Backlighting. Clear Fault Codes If Present.
Installation Recommendations
- Wear Anti-Static Precautions When Handling The Circuit Board Area.
- Handle The Cluster By The Housing To Avoid Touching Electronic Components Or The Face Lens.
- Do Not Force Connectors; Ensure Correct Alignment Before Seating.
- Check Fuses Related To Instrument Cluster If The Unit Is Dead On Arrival.
- Test All Gauges And Warning Lights With The Vehicle Running Before Reassembling Trim.
Most Common Reasons For Failure
Instrument clusters fail for several predictable reasons:
- Worn Or Failed Stepper Motors For Gauge Movement Causing Stuck Or Erratic Needles.
- Electrical Problems Such As Voltage Spikes, Poor Grounding Or Corroded Connectors.
- Damaged Printed Circuit Board Components Or Dry Solder Joints Caused By Vibration And Age.
- Water Ingress Or Moisture Damage From Leaks Leading To Corrosion And Short Circuits.
- Backlight Or Bulb Failures Causing Poor Visibility At Night.
This speedometer assembly is a practical replacement option for workshops and competent DIY mechanics wanting a direct-fit unit for a Peugeot 307 with the 2.0 16V engine. Use the listed part numbers (9655476680, P9655476680, 6103F4, 6106J1) when searching to ensure correct match and fast procurement.
