Description

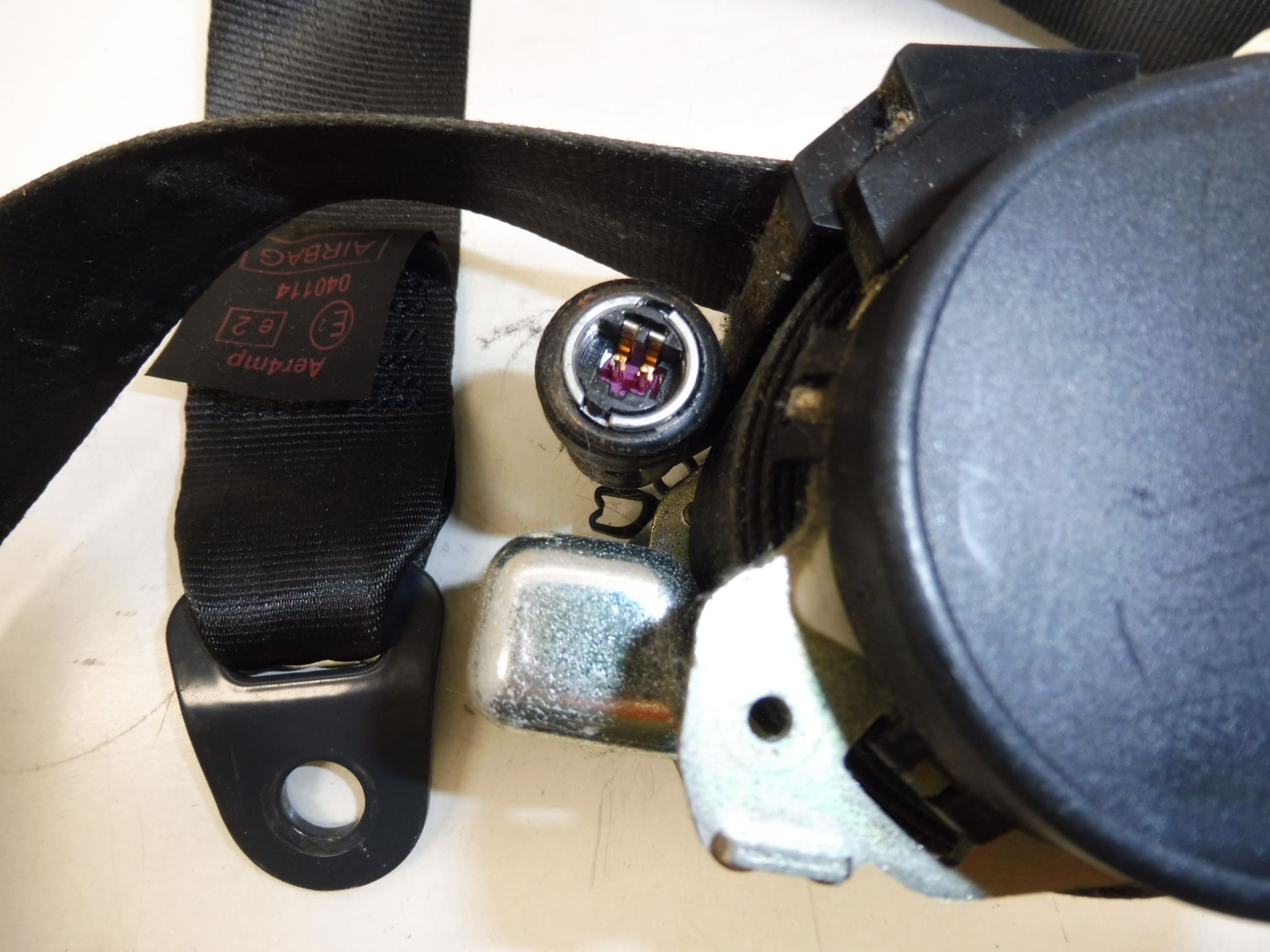

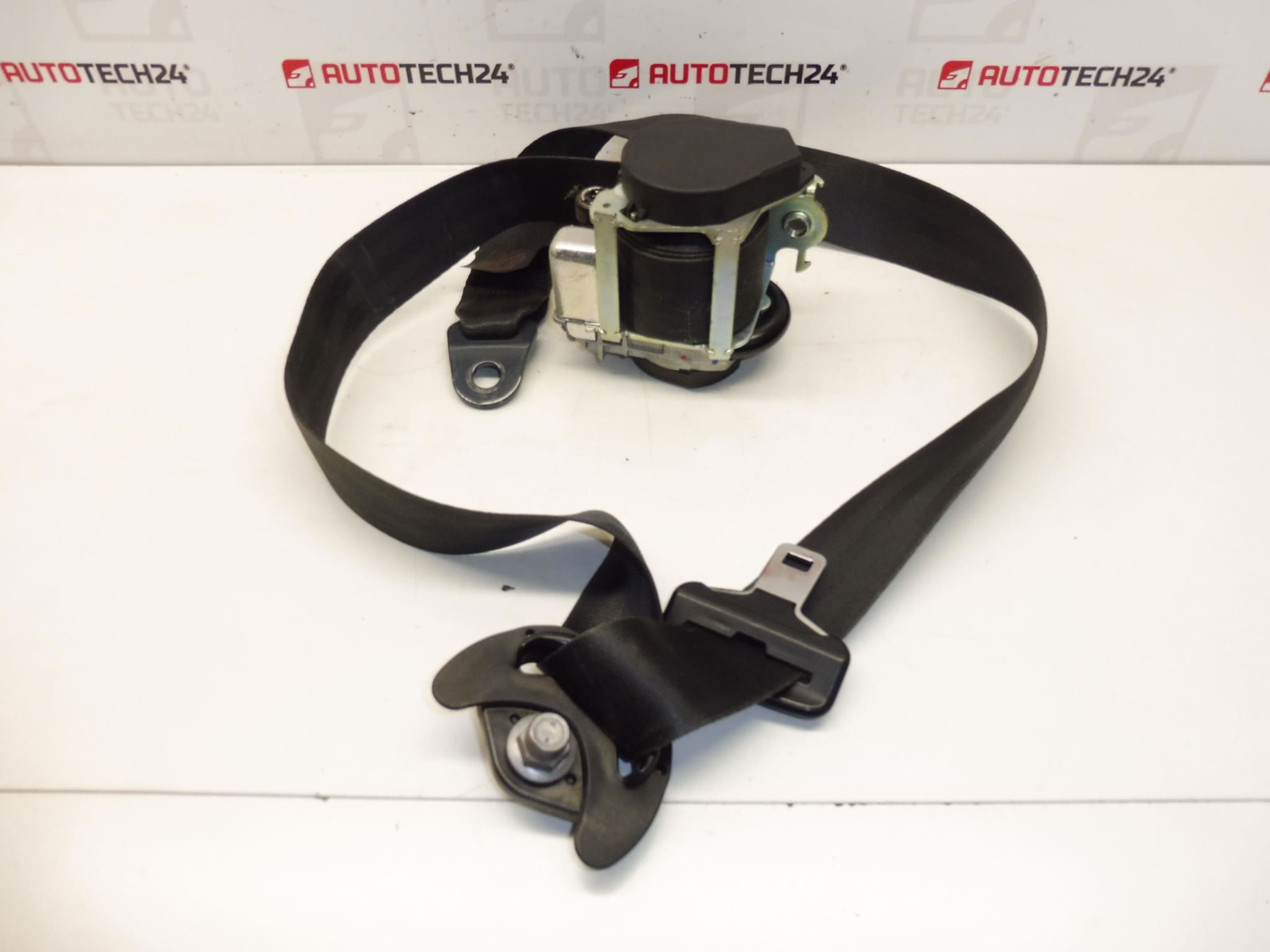

Seat Belt For Citroën C8 And Peugeot 807 — Left Front Seat (Driver)
This driver-side front seat belt is a direct-fit replacement for Citroën C8 and Peugeot 807 models. Intended for professional garages and competent DIYers, the assembly restores occupant restraint functionality and is commonly sought under reference numbers 14007784XX and 8974XF. The part is suitable for vehicles originally equipped with a conventional three-point inertia reel system and will replace worn, damaged, or deployed belts to return secure, reliable restraining performance.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën C8; Peugeot 807
- Product Codes: 14007784XX; 8974XF
- Other Numbers: 807; C8
Key Features And Function
Three-Point Restraint: Provides lap and diagonal restraint for the driver. Retractor Mechanism: Contains an inertia reel that allows normal movement but locks under sudden deceleration. Buckle And Anchor: Designed to mount to the original anchor points on the B-pillar and seat frame. Safety Role: Prevents occupant ejection and reduces risk of injury by restraining body movement during a collision or abrupt stop.
Installation Recommendations
Safety First: Disconnect the negative battery terminal and wait at least 10 minutes before beginning work to minimize the risk of accidental pretensioner deployment if the vehicle is equipped with one. Remove Interior Trim: Carefully detach the B-pillar trim and any seat covers that obstruct access to the retractor, buckle, and anchor bolts.
- Unbolt Lower Anchor And Retractor: Remove the mounting bolts securing the lower anchor and retractor. Keep original bolts if required or replace with equivalent grade fasteners.
- Disconnect Electrical Connector If Present: If the belt assembly includes a pretensioner, carefully unplug the electrical connector before removal.
- Fit New Assembly: Install the new belt in the reverse order, ensure webbing is routed correctly and not twisted, and seat the trim pieces back into place.
- Tightening And Final Checks: Tighten mounting bolts to the manufacturer’s torque specifications, reconnect the battery, and check belt retraction, locking action, and buckle engagement before returning the vehicle to service.
Why The Part Commonly Fails
Wear And Damage: Webbing frays or cuts from repeated abrasion against sharp edges or from improper routing. Contamination: Oils, chemicals, or dirt can degrade webbing and cause sticking or reduced strength. Retractor Faults: Springs or locking mechanisms can seize or lose tension, causing the belt to fail to retract or lock properly. Pretensioner Activation: In the event of a crash, pyrotechnic pretensioners deploy and the entire assembly must be replaced. Corrosion: Anchor bolts and mounting hardware can corrode, compromising secure attachment.
Usage And Replacement Guidance
Inspection Interval: Visually inspect belts regularly for fraying, cuts, or contamination. Replace Immediately After Crash: Any belt that has been subject to deployment, heavy loading, or visible damage should be replaced. No Fixed Lifespan: There is no universal replacement interval; suitability is determined by condition and correct operation.
Fitment And Search Tips
Common Search Terms: Citroën C8 Seat Belt, Peugeot 807 Seat Belt, Driver Seat Belt 14007784XX, 8974XF Seat Belt Assembly. When searching or ordering, use the product codes 14007784XX and 8974XF together with the vehicle model to increase the chance of finding the correct replacement.
