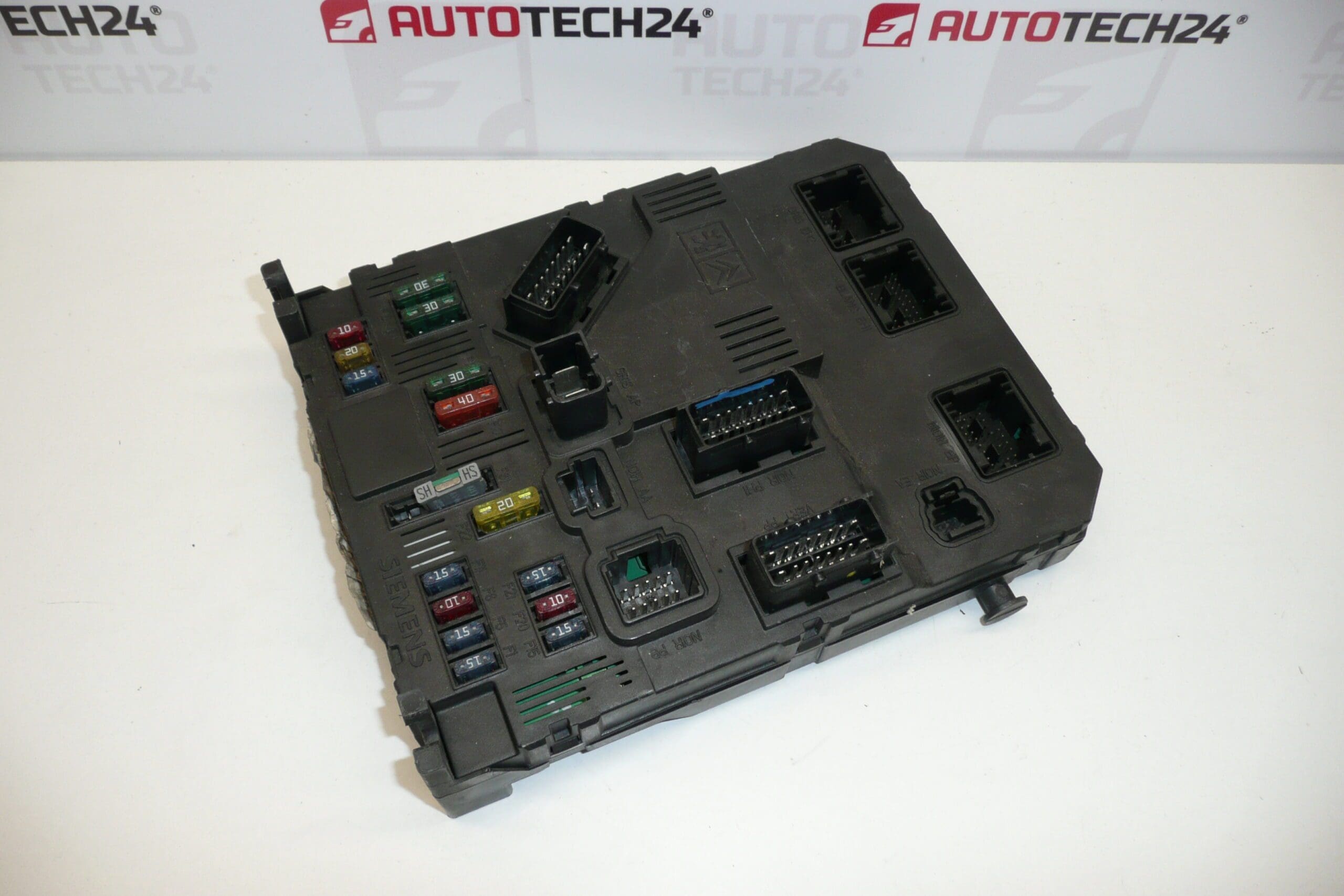

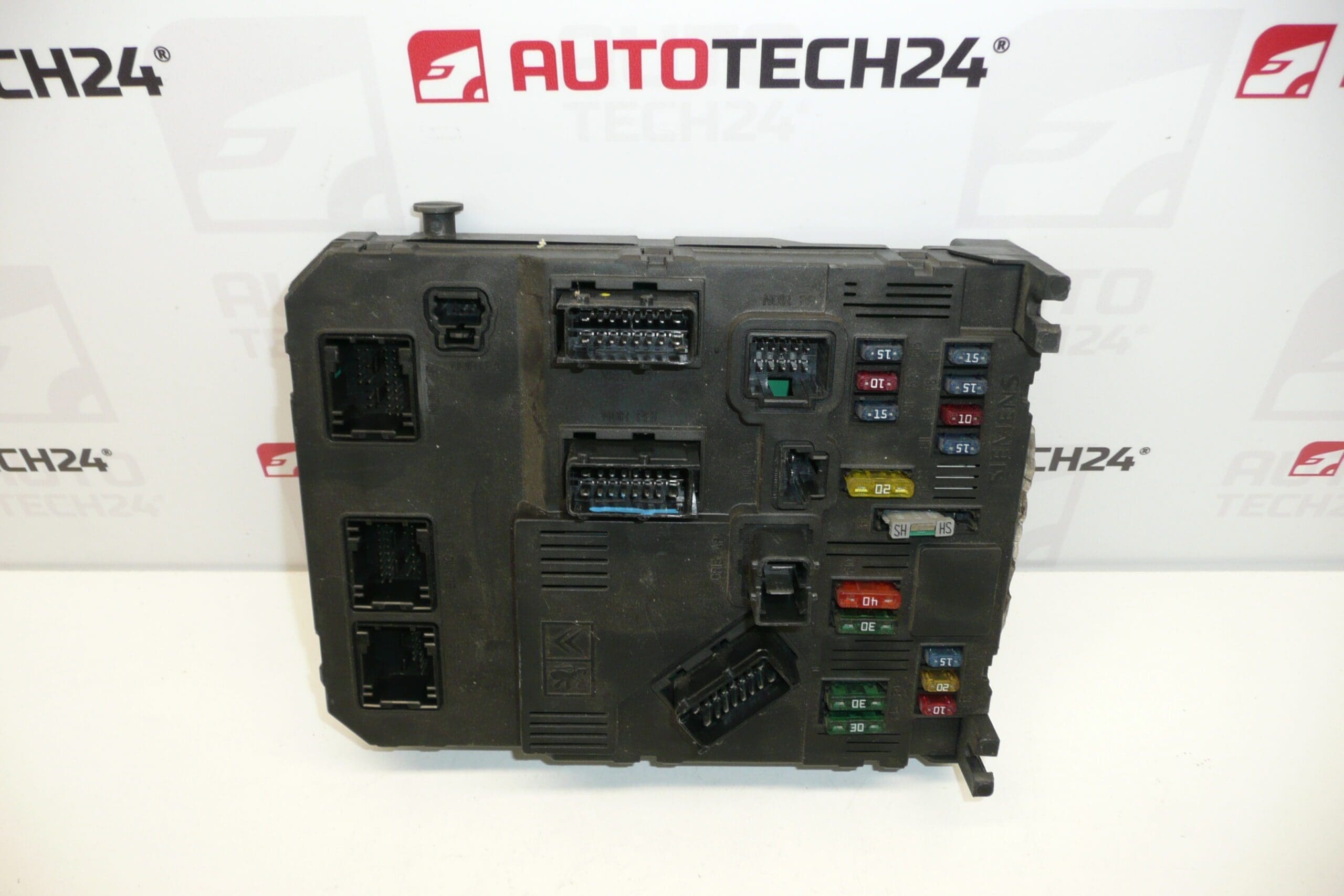

Multifunction BSI Unit for Peugeot 206
Product Overview
This multifunction BSI (Body System Interface) unit is intended for Peugeot 206 vehicles and manages multiple comfort and body electrical functions. The unit shown is associated with reference numbers commonly searched by mechanics and DIY enthusiasts, improving discoverability for parts searches (BSI E02-00, 9649627880, 1650882680, 6580HC, 6580L3, 6580FP, 6580GV). The BSI centralizes circuits for lighting, central locking, wipers, indicators, interior lights, and interfaces with the immobilizer and instrument cluster.
Technical Information
- Manufacturer: Siemens
- Model: E02-00
- Product Codes: 9649627880
- Other Numbers: 1650882680, 6580HC, 6580L3, 6580FP, 6580GV
Compatibility
Fits Peugeot 206 models equipped with the E02-00 BSI variant. Often Identified By The Above Product Codes. Always Verify Physical Connector Layout And Code Labels When Replacing.
Function And Symptoms
The BSI is the central comfort and body control unit responsible for: central locking, interior and exterior lighting control, wiper and washer logic, power windows, alarm and immobilizer interface, and communication with the instrument cluster. Typical symptoms of a failing BSI include intermittent or total loss of central locking, nonfunctional or erratic lighting, persistent dashboard warnings, immobilizer faults or key recognition errors, failed wipers or intermittent (on/off) behavior, and loss of certain comfort functions.
Common Causes Of Failure
- Water ingress or moisture leading to corrosion of connectors or printed circuit traces.
- Thermal stress and solder joint fatigue causing intermittent contacts on the PCB.
- Voltage surges from poor battery connections, jump-starts, or faulty alternators damaging electronic components.
- Connector corrosion or broken pins from vibration and poor sealing.
- Aging of internal components such as capacitors on older units.
Replacement Procedure (Overview)
These steps are intended for experienced technicians and competent DIYers comfortable working on vehicle electrics:
- Disconnect The Negative Battery Terminal Before Any Work To Prevent Short Circuits Or Damage To The Unit.
- Locate The BSI Module (Usually Positioned Behind The Dashboard/Glovebox Area On Peugeot 206). Remove The Necessary Trim Panels To Access The Unit.
- Carefully Unplug All Electrical Connectors, Noting Locking Tabs And Connector Orientation. Avoid Pulling On Wiring Looms.
- Unbolt The BSI From Its Mounting Bracket And Replace With The New Unit, Ensuring Correct Mechanical Seat And Connector Engagement.
- Reassemble Trim Panels And Reconnect The Battery. Some Functions May Require Coding/Initialization (See Installation And Coding Section).
Installation Recommendations
- Always Disconnect The Battery Before Removal And Installation To Protect The Unit From Voltage Spikes.
- Inspect Connectors And Harness For Corrosion Or Damage. Clean And Repair As Necessary Before Installing The New Unit.
- Use Proper Tools To Avoid Damaging Plastic Clips And Fasteners When Removing Dashboard Trim.
- If The Vehicle Has Experienced Water Ingress, Verify And Repair The Source Of Leaks Before Fitting A Replacement BSI.
- After Installation, Verify All Vehicle Functions And Run Diagnostics To Confirm No Stored Faults Remain.
Installation And Coding – Important
The Unit Is Used And May Be Paired With The Original Vehicle (VIN/PIN/Keys).
Options To Commission The Unit:
- Cloning Data From The Old Unit (EEPROM/Flash) – After Cloning The Unit Becomes Plug And Play.
- Virginization And Subsequent Initialization/Telecoding Via DiagBox (Or Online) Plus Key Adaptation.
Recommended To Be Performed By A Specialist With PSA Service Equipment (DiagBox/Lexia/PP2000).
Before Removal/Installation Always Disconnect The Battery And Follow The Manufacturer’S Procedures To Avoid Damaging The Unit.
Why Replace And Service Frequency
BSI units do not have a scheduled replacement interval. Replacement Is Usually Triggered By Functional Failures Or Diagnostic Faults. With Proper Vehicle Care (Dry Cabin, Stable Electrical System), A BSI Can Last Many Years. Units Exposed To Moisture, Repeated Voltage Issues, Or Harsh Environmental Conditions Tend To Fail Earlier.
