Description

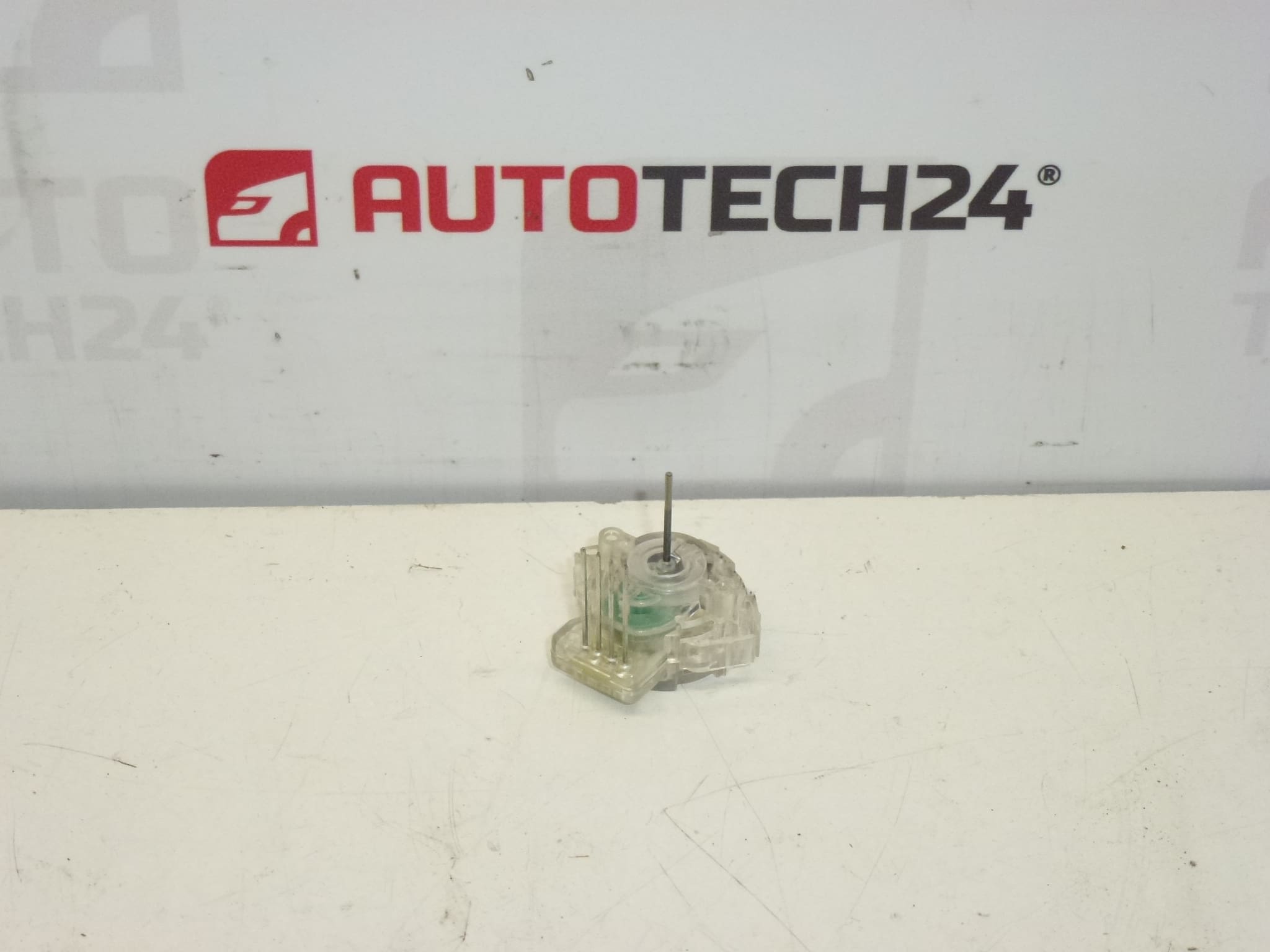

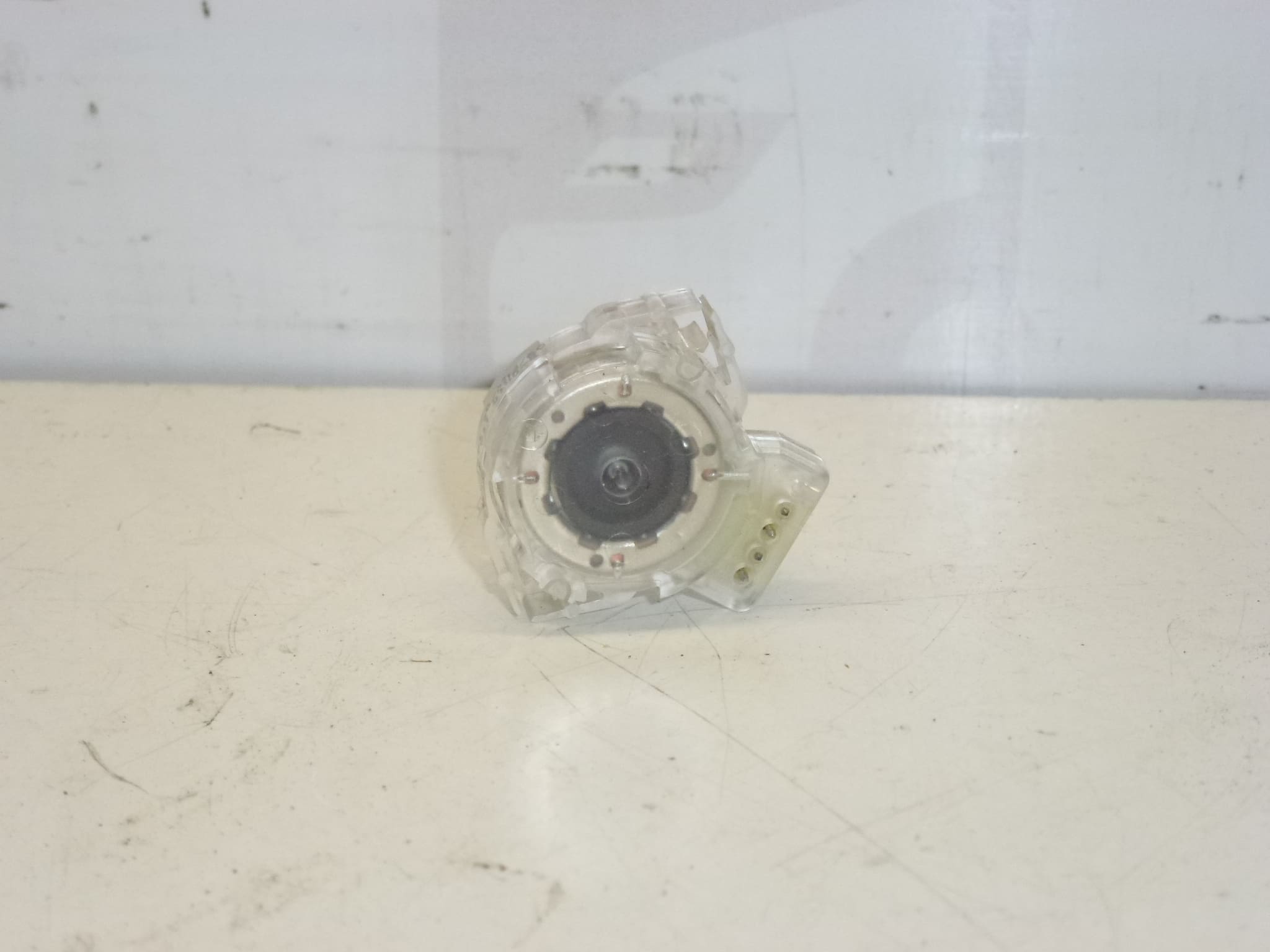

Stepper Motor for the Speedometer and Tachometer for Citroën C5 First Series 2000–2007.
This stepper motor drives the instrument cluster gauges—specifically the speedometer and tachometer—on Citroën C5 first‑generation vehicles (2000–2007). Designed for mechanics and experienced DIYers, this replacement part restores precise needle movement and eliminates common gauge jitter, sticking or complete failure. The unit is compact and mounts directly to the instrument cluster PCB; technicians often search by part number or under terms such as “stepper motor,” “speedometer motor” or “tachometer motor” when sourcing this component.
Technical Information
- Manufacturer: Citroën (vehicle manufacturer)
- Model: Citroën C5 First Series (2000–2007)
- Product Codes: Varies by instrument cluster and supplier; commonly searched as Stepper Motor / Gauge Motor for C5 instrument cluster
- Additional Numbers: Not Specified
Function And Symptoms
The stepper motor converts electrical pulse signals from the instrument cluster electronics into precise angular movement of the gauge needles. Typical symptoms of a failing unit include erratic needle behavior, needles that stick at zero or a fixed position, slow or delayed needle response, or complete loss of movement in the affected gauge. These symptoms are usually intermittent at first and worsen over time.
Common Failure Causes
- Mechanical Wear: Plastic gears and worm drives can wear or break after years of use.
- Lubricant Degradation: Old or contaminated grease can harden and cause the motor to bind.
- Electrical Issues: Connector corrosion, intermittent contacts or board solder joint failures affect signal delivery.
- Bearing Seizure: Motor bearings may seize after extended use or exposure to contaminants.
Installation Recommendations
Installation should be performed by a trained technician or an experienced DIYer comfortable with instrument cluster removal. Recommended steps:
- Disconnect The Battery Before Starting To Avoid Short Circuits And To Protect Instrument Electronics.
- Remove Interior Trim Panels And Unscrew The Instrument Cluster From The Dash.
- Carefully Disconnect Electrical Connectors And Remove The Cluster From The Vehicle.
- Open The Cluster Housing On A Clean, Static‑Safe Work Surface; Note Fastener Types And Cable Routing.
- Locate The Stepper Motor On The PCB; Remove Any Retaining Screws Or Clips And Note Motor Orientation.
- Replace With The New Stepper Motor Ensuring Proper Alignment Of The Gear Teeth And Connector Seating.
- Reassemble The Cluster, Reconnect The Battery And Verify Gauge Operation Before Final Reinstallation.
Handle the cluster gently to avoid damaging the display, flex cables or PCB. Test the gauges through the vehicle’s ignition cycle before reinstalling the trim panels.
Why Replace This Part
Replacing a faulty stepper motor is a cost‑effective way to restore accurate instrument readouts without replacing the entire cluster. Because the part commonly fails due to mechanical wear or degraded lubrication rather than catastrophic electrical damage, a direct swap usually resolves needle inaccuracies and intermittent failures.
Keywords: Stepper Motor, Speedometer Motor, Tachometer Motor, Instrument Cluster Motor, Citroën C5, Gauge Motor, C5 I 2000–2007.
