Description
Complete combined instrument cluster for Citroën Berlingo II and Peugeot Partner II. Removed from a vehicle with 263,000 km.

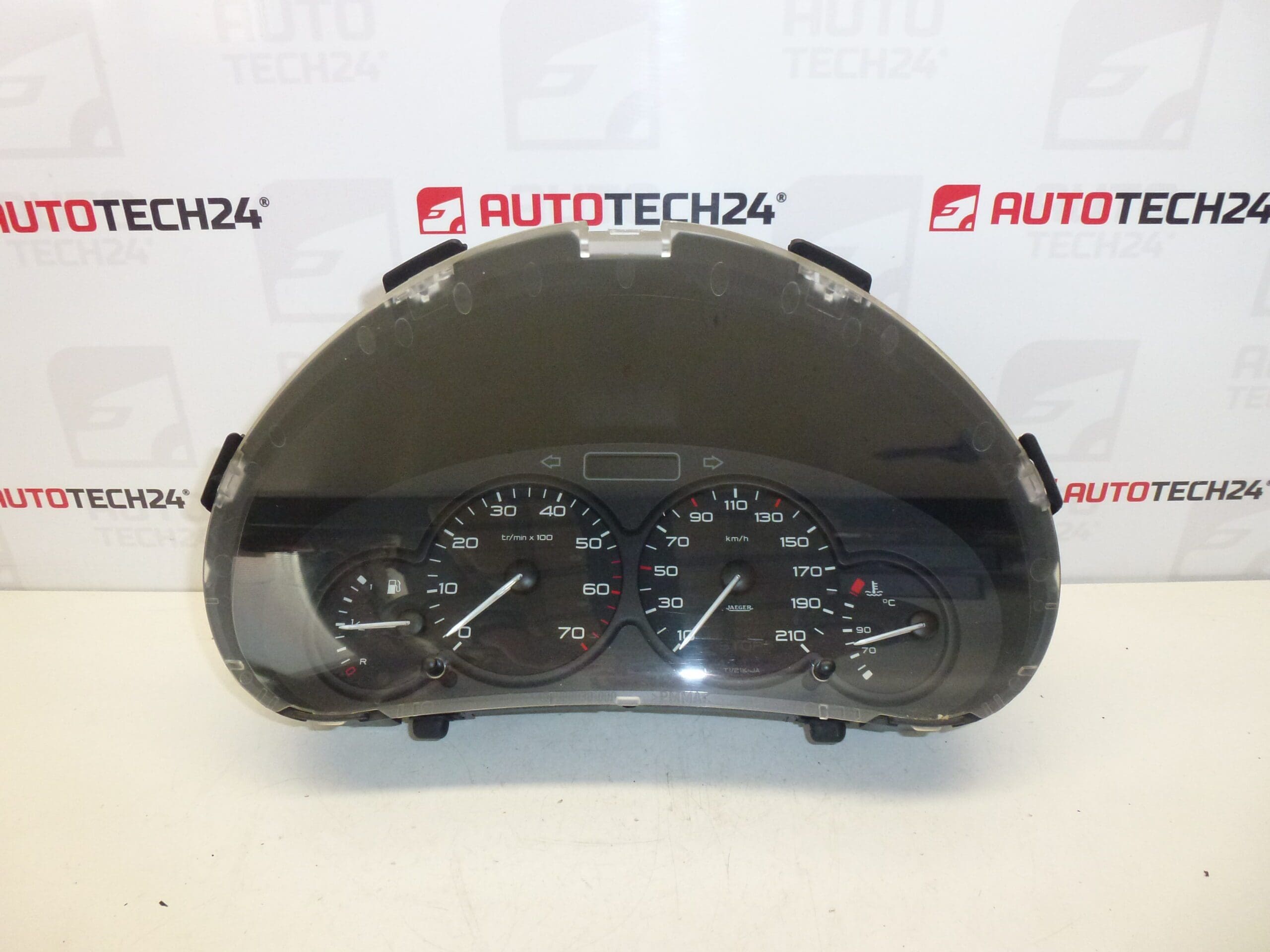

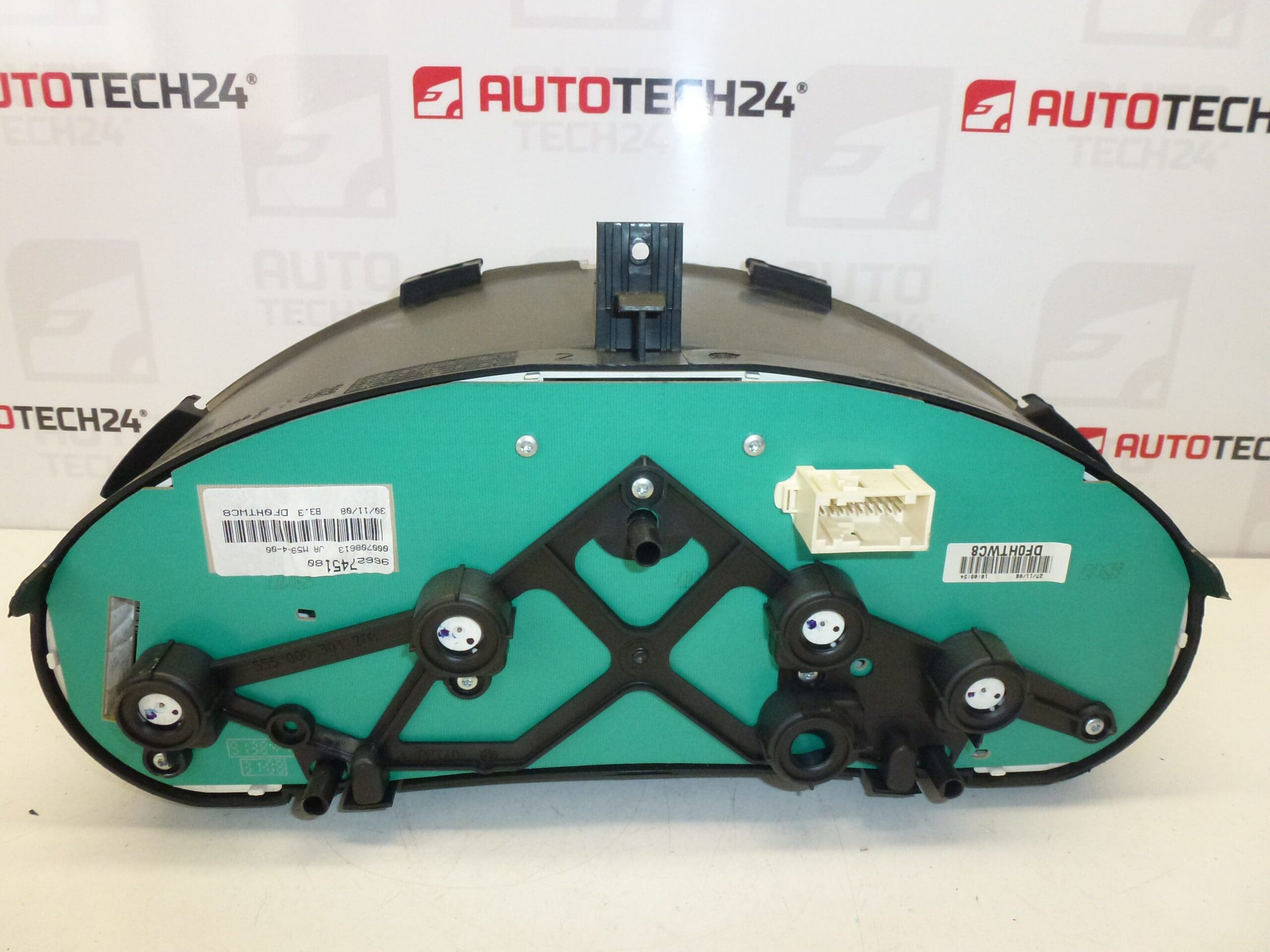

This complete instrument cluster (speedometer/combined dash) is a direct-fit used component originally fitted to Citroën Berlingo II and Peugeot Partner II models. It includes speedometer, odometer, warning lamps and driver information display elements required for safe operation and vehicle diagnostics. Ideal for professional workshops and DIY mechanics looking for a cost-effective replacement part using original equipment identifiers (9662745180 / 6105V8 / 6105V7 / 6924K1).
Key Benefits
– Restores full instrument functionality including speed readout, mileage display and warning indicators.
– Direct replacement using OEM mounting points and connectors.
– Saves diagnostic time by matching original part numbers used on Berlingo II / Partner II vehicles.
Replacement Guide
- Disconnect the negative battery terminal before any work to avoid electrical damage.
- Remove trim panels around the steering column using appropriate trim tools to avoid damage.
- Unscrew the instrument cluster fixing screws (typically Torx) and carefully pull the cluster forward.
- Unplug multi-pin connector(s) and any illumination connectors. Note clip positions for reassembly.
- Fit the replacement cluster, connect connectors and secure with screws. Refit trim panels.
- Reconnect the battery and perform ignition checks. Some vehicles may require diagnostic adaptation to restore full functionality.
Mounting Recommendations
- Always Isolate The Battery Before Removal And Follow Manufacturer Procedures To Prevent Damage.
- Use Proper Trim Tools To Avoid Breaking Plastic Clips And Dashboard Finishes.
- Inspect Connector Pins For Corrosion Or Bent Pins And Clean Contacts If Necessary.
- After Installation, Verify All Warning Lamps And Instrument Functions With The Ignition On.
- If Any Display Or Communication Faults Persist, Use A Compatible Diagnostic Tool (e.g., PSA DiagBox/Lexia) For Fault Reading And Adaptation.
Most Common Failure Causes
Instrument clusters from high‑mileage vehicles most commonly fail due to worn stepper motors (affecting gauges), cracked solder joints on printed circuit boards, faulty LCD segments or backlighting, moisture ingress and electrical surges from a failing alternator. Vibration and temperature cycling accelerate connector and solder joint fatigue. Odometer display errors or frozen gauges are typical symptoms that indicate the cluster needs repair or replacement.
Technical Information
- Manufacturer: Stellantis (Citroën / Peugeot)
- Model: Citroën Berlingo II; Peugeot Partner II
- Product Codes: 9662745180, 6105V8, 6105V7, 6924K1
- Other Numbers: Removed From Vehicle With 263,000 Km
Notes For Professionals And Enthusiasts
This unit is a used original instrument cluster. When replacing, be aware that mileage data and certain vehicle-specific parameters can be stored in the cluster electronics. In some cases, mileage transfer or coding/cloning of stored data is required to match the vehicle. Perform such tasks with appropriate diagnostic equipment and follow legal requirements regarding odometer handling. Recommended tools for diagnosis and adaptation include standard workshop toolsets and PSA-compatible diagnostic interfaces when adaptation or coding is necessary.
Summary
OEM-fit instrument cluster for Citroën Berlingo II and Peugeot Partner II offering a practical replacement option for worn or faulty dashboards. Use this part to restore full instrument functionality, paying attention to safe removal, connector condition and possible need for diagnostic adaptation after installation.
