Description

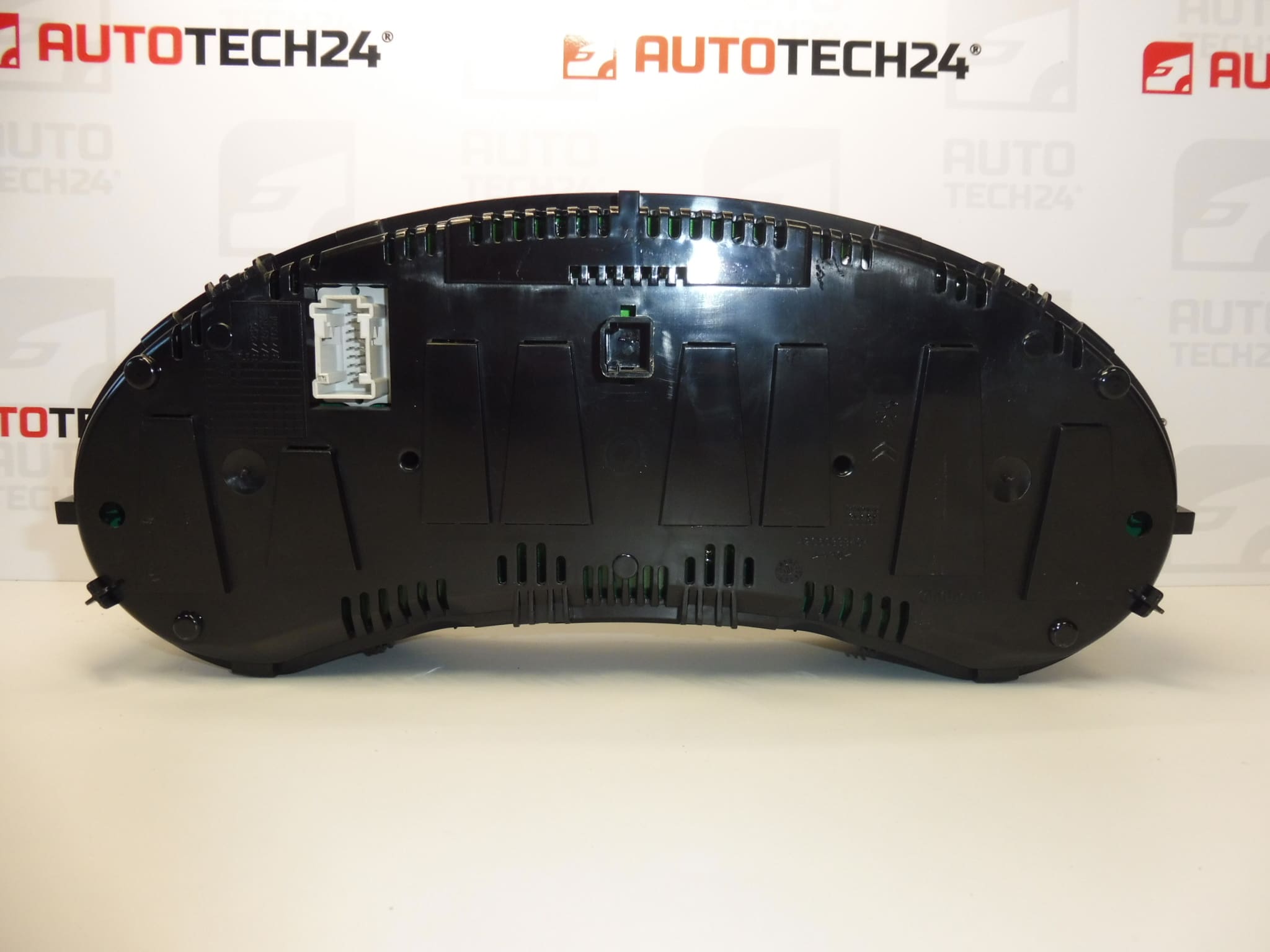

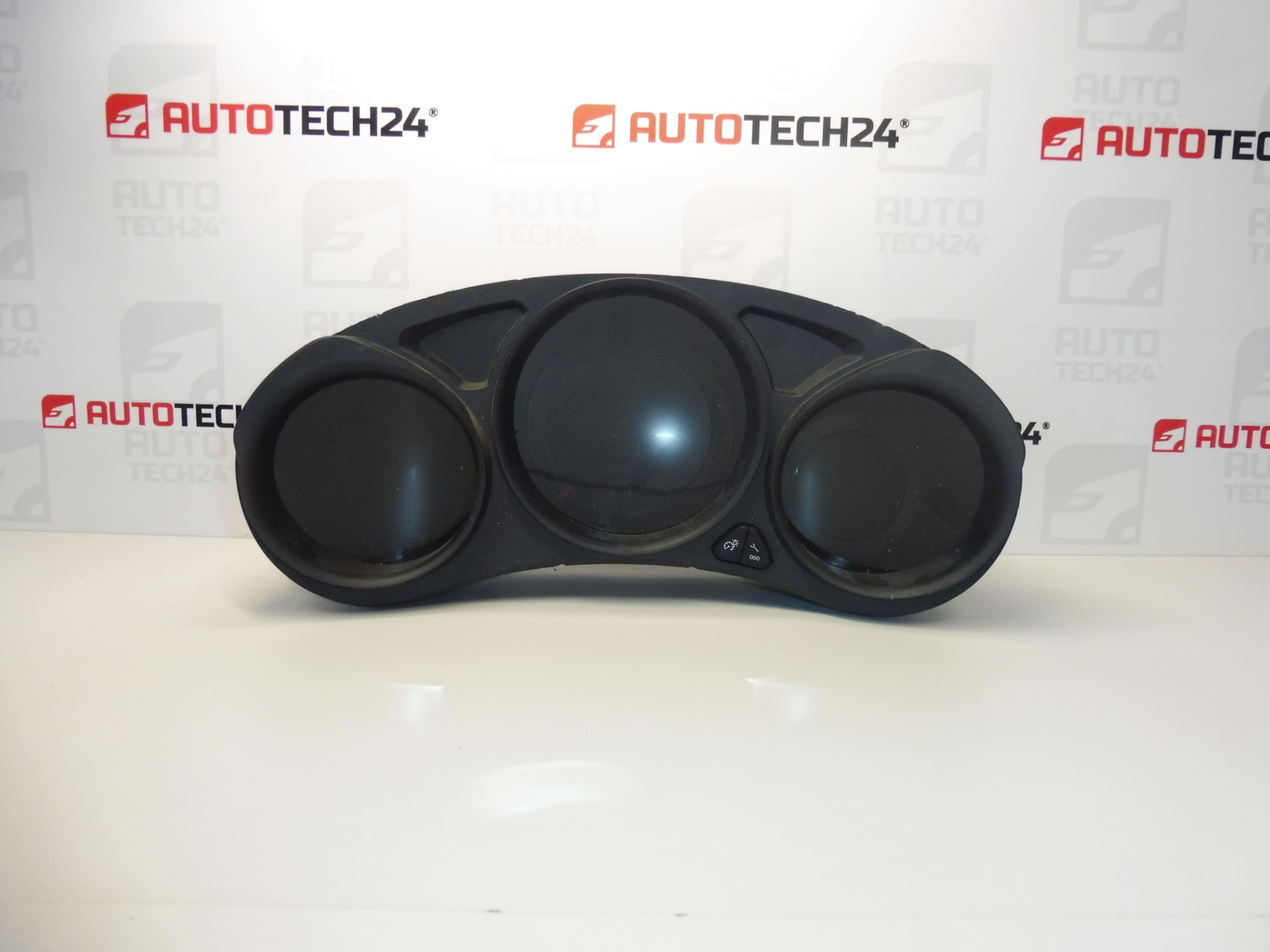

Combined instrument cluster for Citroën C4 B7. Mileage reading is unknown.
This original-equipment style instrument cluster (speedometer/gauge cluster) is a direct replacement unit intended for Citroën C4 II (B7) vehicles. Frequently searched by OE numbers 9676962980 and 9813297080, this part is aimed at professional workshops and skilled DIYers who need a reliable dash unit to restore vehicle instrumentation and warning systems. The cluster displays vehicle speed, driver information and warning indicators; the odometer value on this specific unit is not known and may require reprogramming or cloning to reflect the vehicle’s actual mileage.
Technical Information
- Manufacturer: Stellantis / Citroën
- Model: Citroën C4 II (B7)
- Product Codes: 9676962980, 9813297080
- Additional Numbers: C4 II B7
Function And Features
The instrument cluster provides the driver with essential information: vehicle speed, odometer/trip, fuel level, engine and system warning lights, and other on-board messages. The unit interfaces with the vehicle CAN network to receive sensor and ECU data and presents it through analog gauges and/or digital displays depending on the specific cluster variant.
Fitment
Designed for Citroën C4 II (B7) models. Always verify the OE numbers (9676962980 / 9813297080) against the original unit to confirm fitment for a specific vehicle.
Replacement Procedure
- Disconnect the negative battery terminal before starting work to prevent short circuits and damage to electronic modules.
- Remove the trim surrounding the dash cluster (careful removal of clips and screws to avoid damage).
- Unscrew the instrument cluster mounting screws and gently pull the cluster forward.
- Disconnect electrical connectors—note connector orientation and locking tabs.
- Install the replacement unit by reversing the removal steps. Ensure connectors are fully seated and secure.
- Reconnect the battery and check all instrument functions, warning lights and communication with vehicle systems.
Installation Recommendations
- Always disconnect the battery before removal/installation.
- Handle the unit carefully to avoid static discharge and damage to delicate electronics or displays.
- Inspect connectors and wiring for corrosion or damage; replace or repair as needed before installation.
- If the unit requires coding, cloning or odometer transfer, use appropriate PSA-compatible diagnostic tools and follow manufacturer procedures.
- Verify fuses and related sensor inputs if the new cluster does not power up or shows missing data.
Why This Part Fails Most Often
- Electrical Faults: Voltage spikes, poor grounding or water ingress can damage internal circuitry or display modules.
- Wear Of Moving Elements: In clusters with stepper-motor-driven gauges, motor wear or stepper failure can cause erratic or stuck needles.
- Display Degradation: LCD/LED segments and backlighting may fail over time, leading to missing or dim information.
- Thermal And Mechanical Stress: Heat cycles and vibration can cause solder joint cracks or component failures on the cluster PCB.
- Software/Memory Corruption: Internal memory (EEPROM/Flash) corruption can result in incorrect readings or loss of functions and may require cloning or reprogramming.
This instrument cluster is suitable for professional replacement and for experienced DIY enthusiasts. Search by OE numbers 9676962980 or 9813297080 to find matching units quickly and ensure correct fitment before installation.
