Description

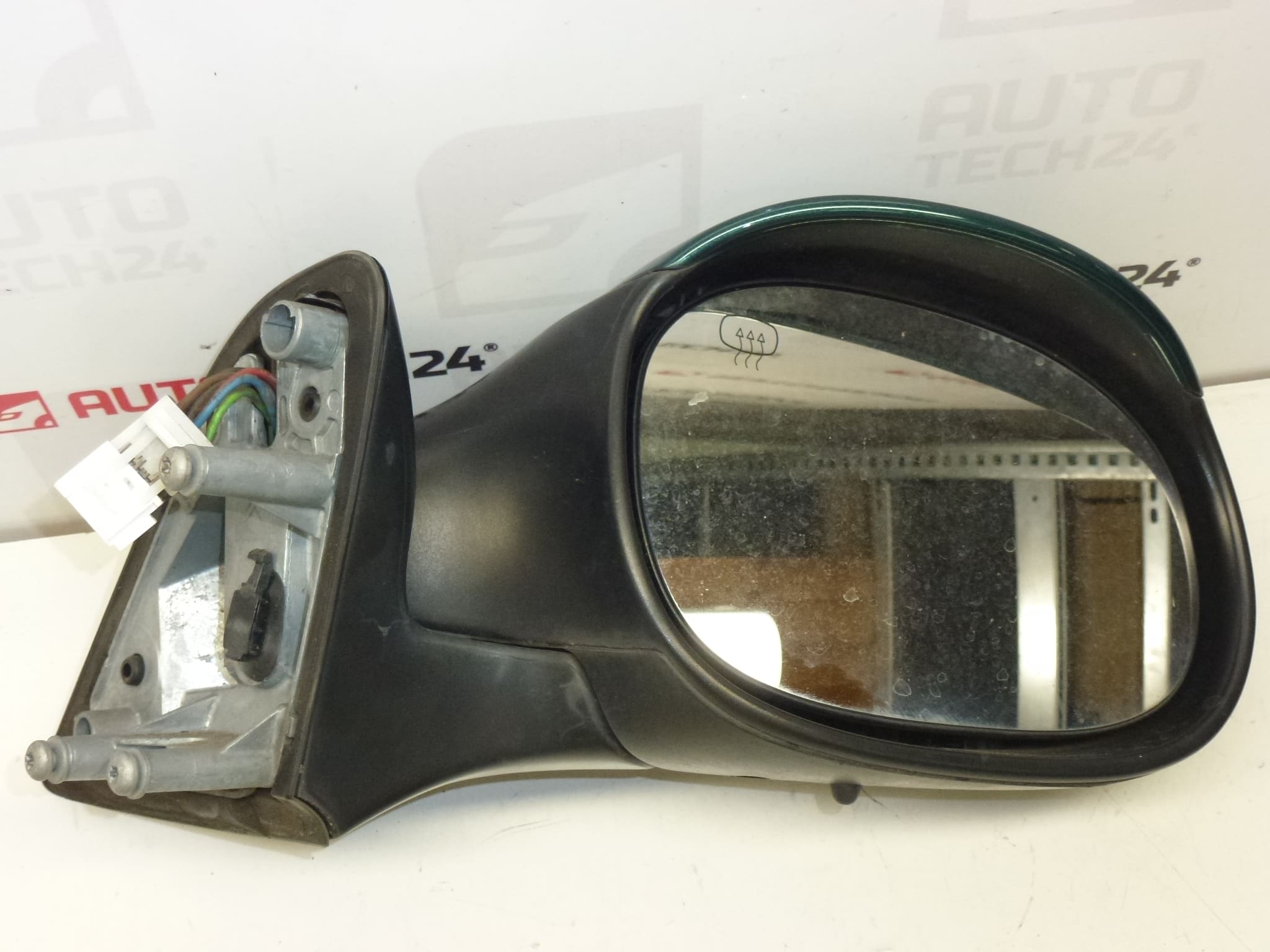

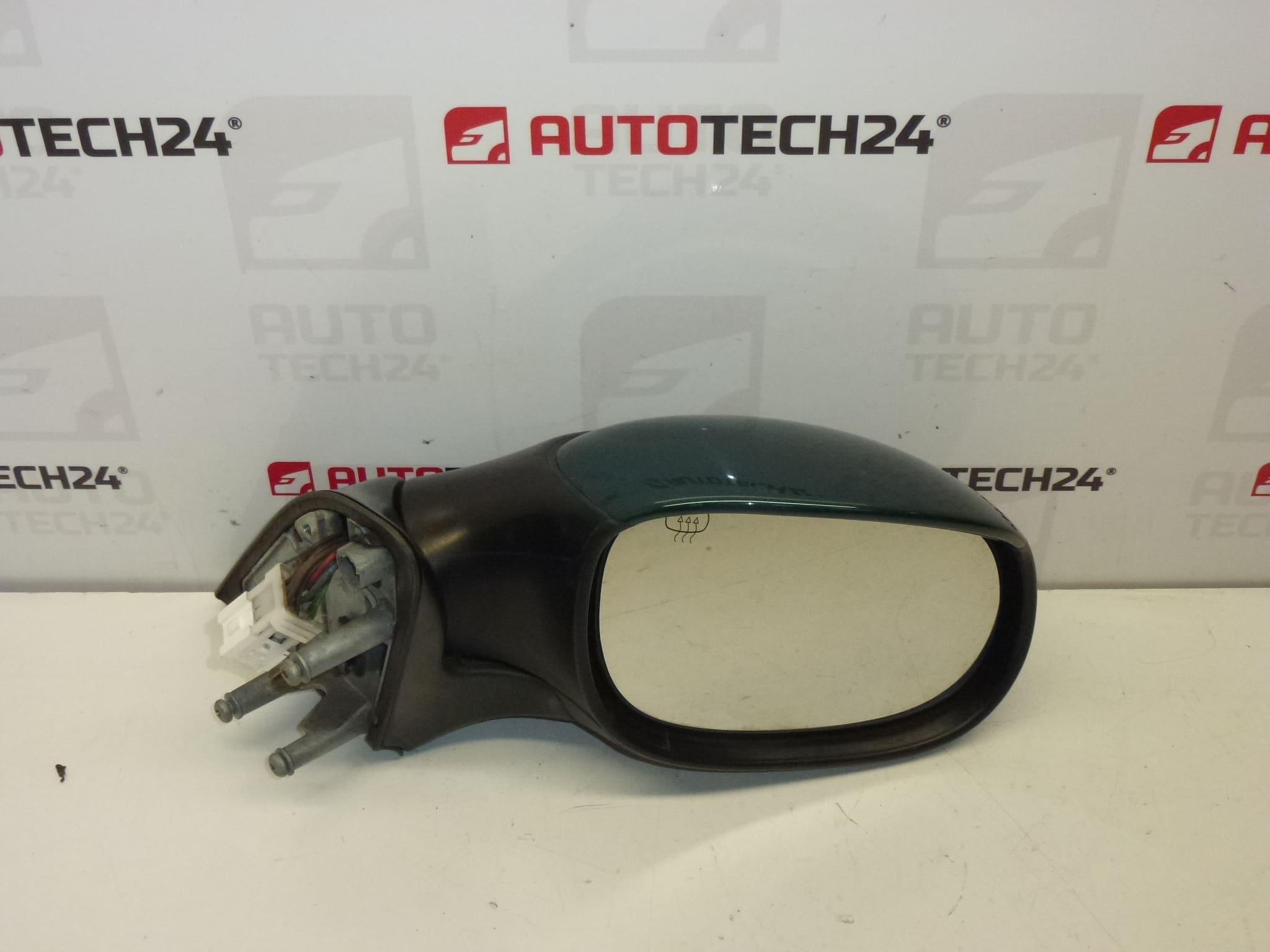

Right exterior mirror for Citroën Xsara Picasso, electrically operated and folding, heated, with temperature sensor. Color KSD – Paint Lonchamp Green. Square 9‑wire connector. Passenger side.
Direct-fit right side (passenger) exterior mirror designed for Citroën Xsara Picasso. This unit combines electric adjustment and power folding with an integrated heating element and an ambient/temperature sensor to maintain visibility in cold and wet conditions. The mirror comes in paint code KSD (Lonchamp Green) and uses a square 9‑pin connector for direct electrical replacement. Often searched by product numbers 96461533XT, 8149NP or 8149FQ.
Key Features
- Electric Adjustment: Smooth motorized mirror movement for quick position setting.
- Power Folding: Electrically retractable mirror to protect from impacts when parked.
- Heated Glass: Integrated heating element to remove ice and condensation.
- Temperature Sensor: Onboard sensor supports climate-related functions and improves automatic systems that depend on outside temperature input.
- Connector: Square 9‑pin plug for plug‑and‑play electrical connection.
- Finish: Painted KSD (Lonchamp Green) for direct visual match on vehicles with the same color code.
Technical Information
- Manufacturer: Stellantis / Citroën
- Model: Citroën Xsara Picasso (Passenger Side / Right)
- Product Codes: 96461533XT, 8149NP, 8149FQ
- Other Numbers: KSD (Paint Code), KSD NFP
Compatibility
Intended for Citroën Xsara Picasso models that use the listed product codes and the right (passenger) side mirror configuration. Always compare the connector type (square 9‑pin) and function set (electric adjust, folding, heating, temperature sensor) to the original unit before installation.
Installation Recommendations
- Safety First: Disconnect the vehicle battery before beginning work to avoid short circuits when handling electrical connectors.
- Access: Remove the interior door trim or the small triangular trim cover on the A‑pillar to reach the mirror mounting bolts and electrical connector.
- Disconnect: Unplug the square 9‑pin connector. Inspect pins and socket for corrosion or bent terminals and clean if necessary.
- Remove Mounting Bolts: Support the mirror while removing the fasteners to avoid dropping it and damaging the paint or glass.
- Fit New Unit: Position the replacement mirror, tighten mounting bolts to the manufacturer’s recommended torque, reconnect the electrical plug and test all functions (adjustment, folding, heating) before refitting the trim.
- Final Check: Verify mirror fold/unfold operation and that the heated function clears condensation; ensure the mirror housing aligns properly and there are no warning lights related to mirror electronics.
Why This Part Fails Most Often
- Impact Damage: Collisions or knocks while parked are the most common cause of complete mirror replacement.
- Motor Wear: The electric adjustment or folding motors can wear out after many years of use, especially with frequent folding cycles.
- Electrical Faults: Corrosion or damage to the connector and wiring can interrupt power to the heater or actuator. Water ingress can accelerate failures.
- Heating Element Or Sensor Failure: The heating element or temperature sensor may degrade over time, reducing de‑icing performance or sensor accuracy.
- Cosmetic Damage: Paint fade or scratches do not affect function but can necessitate replacement for visual matching.
Notes For Mechanics And DIYers
This mirror is suitable for professional fitters and experienced DIYers. Because it combines mechanical and electrical components, check connectors and mechanical linkages thoroughly during replacement. Keep the original mounting hardware where possible, and confirm the paint code (KSD) if a perfect color match is required.
Keywords
Citroën Xsara Picasso Right Mirror, Right Side Mirror Xsara Picasso, Electric Folding Mirror, Heated Mirror With Sensor, 96461533XT, 8149NP, 8149FQ, KSD Lonchamp Green
