Description

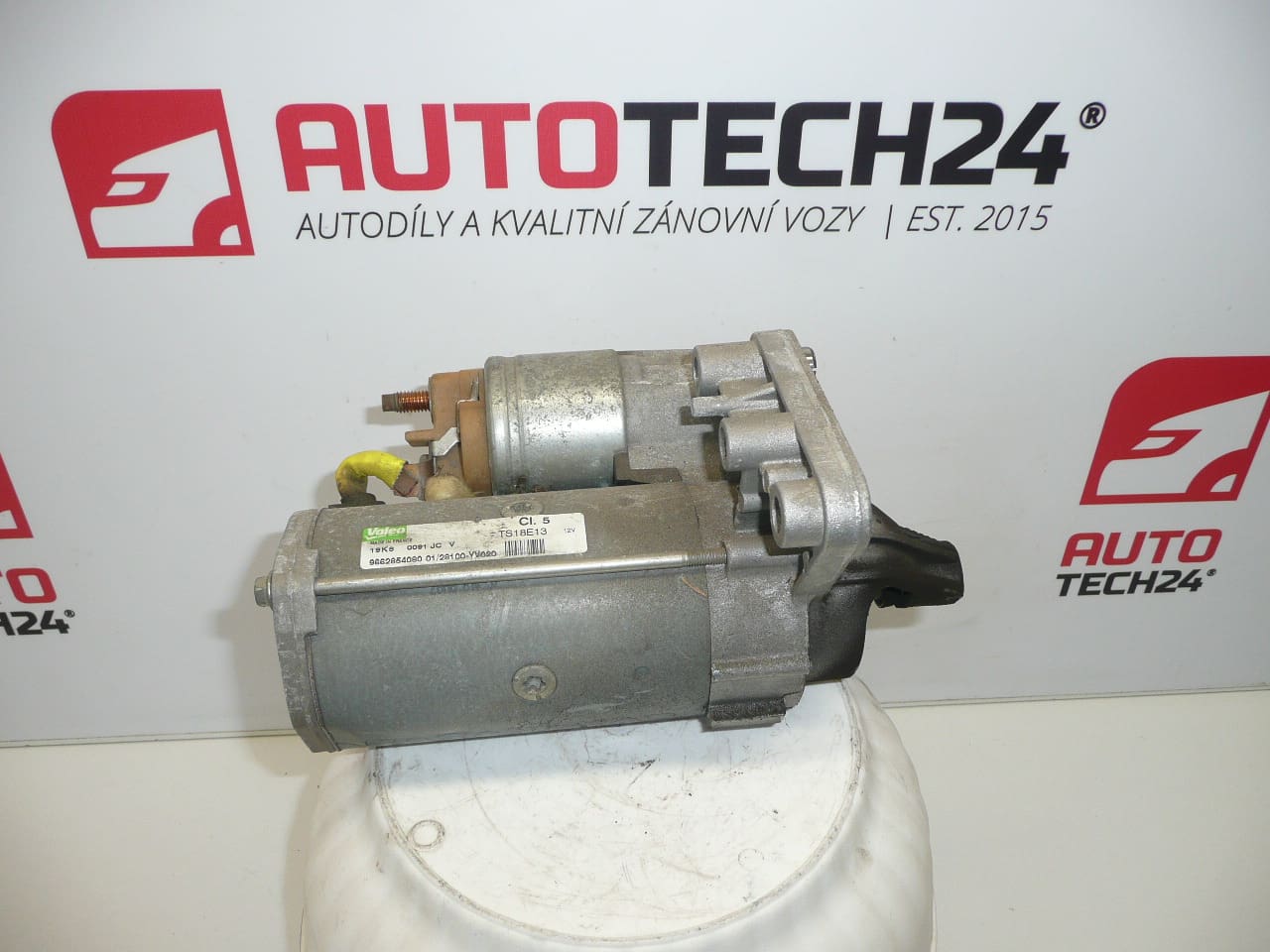

High-quality Valeo starter unit taken from a vehicle with 62,000 km. Designed for PSA Group diesel engines, this CL5 / TS18E13 starter delivers reliable cranking performance for 1.4 HDi and 1.6 HDi installations. The compact 12 V unit features an 11-tooth pinion and 1.5 kW nominal power, making it a direct-fit replacement where the listed part numbers match.
Features
• Manufacturer: Valeo
• Voltage: 12 V
• Pinion Teeth: 11
• Rated Power: 1.5 kW
• Weight: 3.5 kg
• Mounting Holes: 4
• Mounting Position/Inclination: L 37
Compatibility
This starter is intended for PSA Group vehicles equipped with 1.4 HDi and 1.6 HDi diesel engines. It is commonly fitted across various Citroën and Peugeot models that share the HDi powertrains. Always verify fitment by matching the part numbers and physical mounting specification before purchase.
Typical Part Numbers
Common internal and OEM references for cross-checking: 5802AA, 5802EG, 5802Z8, 5802Q1, 5802Z9. Additional numbers found on this unit: 9645100680, 9662854080, 9663528880.
Installation Guidance
Replacement is straightforward for experienced mechanics or competent DIYers with basic tools. Typical steps:
- Disconnect the negative battery terminal to avoid short circuits.
- Locate the starter on the bellhousing for the HDi engine. Support the vehicle safely if access requires going underneath.
- Label and disconnect electrical connections (battery cable and solenoid connectors).
- Remove the mounting bolts (this unit has 4 mounting holes) and lower the starter clear of the flywheel housing.
- Position the replacement starter, tighten bolts to the manufacturer’s torque, reconnect electrical connections, and reconnect the battery.
If unsure, follow the vehicle service manual or consult a professional technician. Correct torque and electrical connections are critical to avoid starter damage or poor engagement.
Function And Common Failure Modes
The starter converts battery electrical energy into mechanical rotation to crank the engine via a solenoid-operated pinion gear. Common causes of starter failure include worn brushes or commutator, solenoid faults, pinion or ring gear wear, oil contamination, and electrical issues such as poor battery or corroded connections. Heat and repeated high-load starts accelerate wear.
Service Life
Service life varies with use and conditions; many starters last well over 100,000 km in typical service, but earlier replacements can occur due to contamination, electrical faults, or mechanical wear. This specific unit was removed at 62,000 km.
Why Choose This Unit
If your vehicle accepts the listed part numbers and matches the specification (12 V, 11 teeth, 1.5 kW, 4 mounting holes), this Valeo CL5 starter is a practical direct-replacement option offering proven compatibility with common PSA HDi applications. It is suitable for professional garages and skilled DIY repairers who need to restore reliable engine cranking.
Technical Information
Manufacturer: Valeo

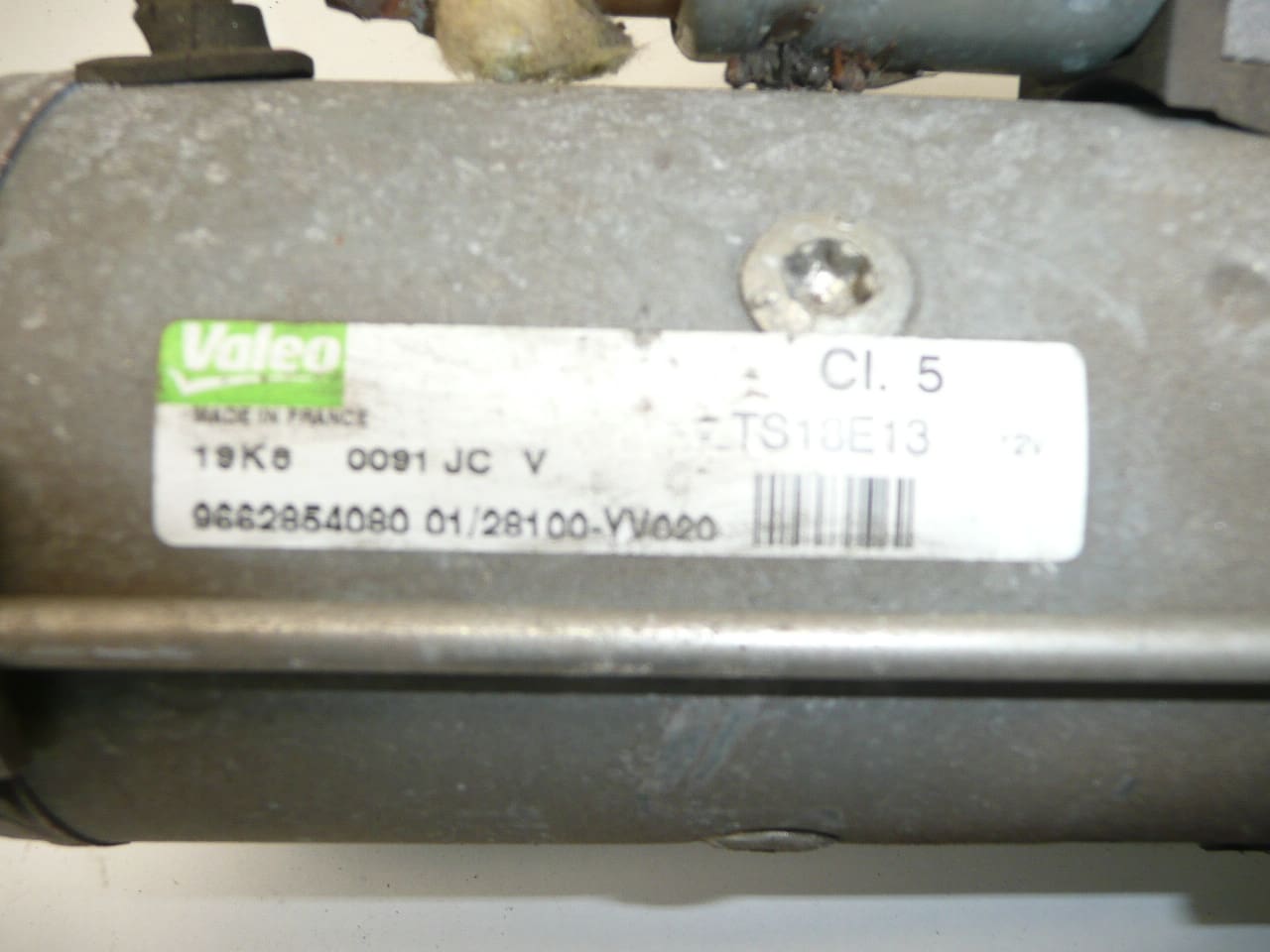

Model: TS18E13 CL5 (suitable for 1.4 HDi and 1.6 HDi applications)
Product Codes: 5802AA, 5802EG, 5802Z8, 5802Q1, 5802Z9
Other Numbers: 9645100680, 9662854080, 9663528880
