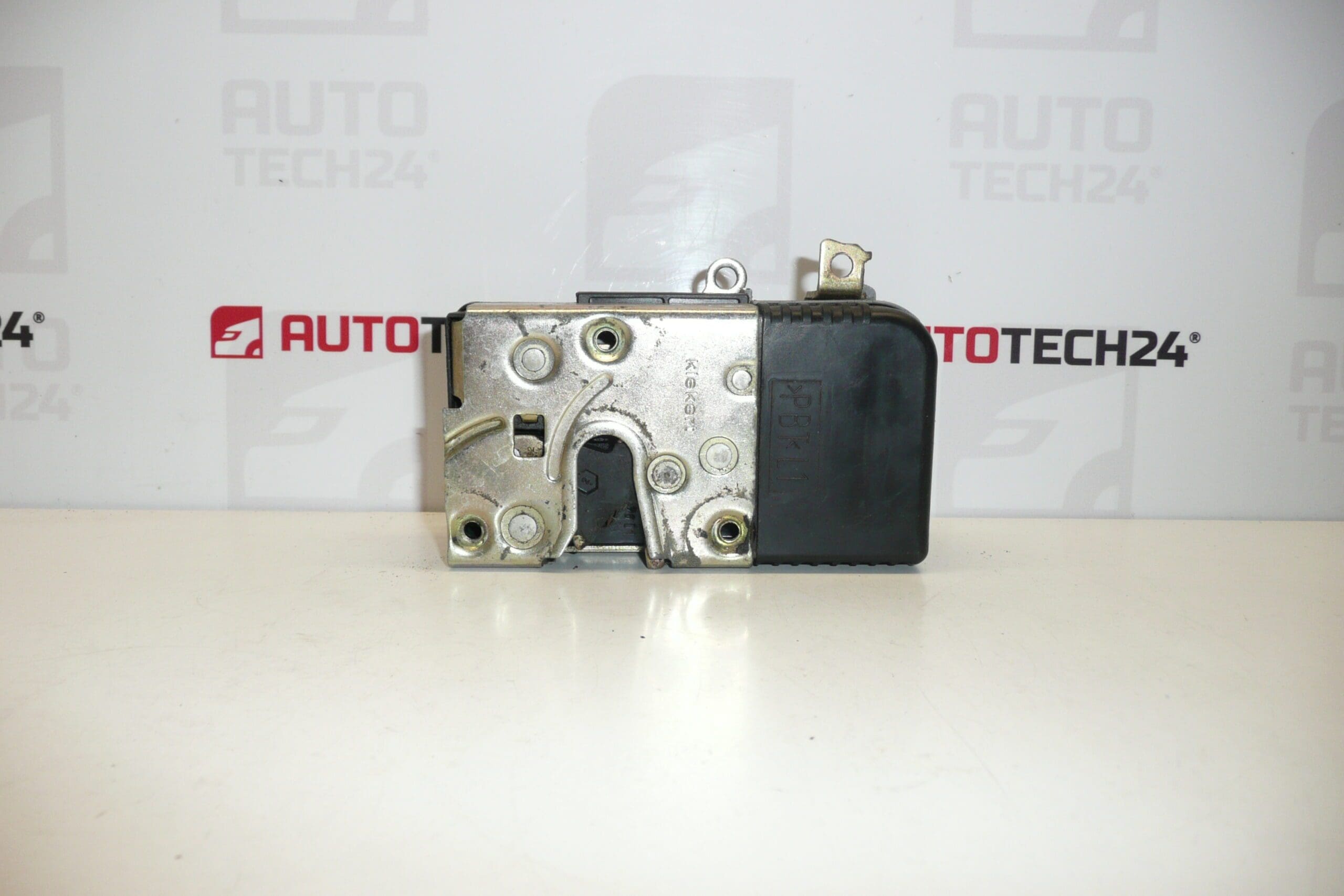

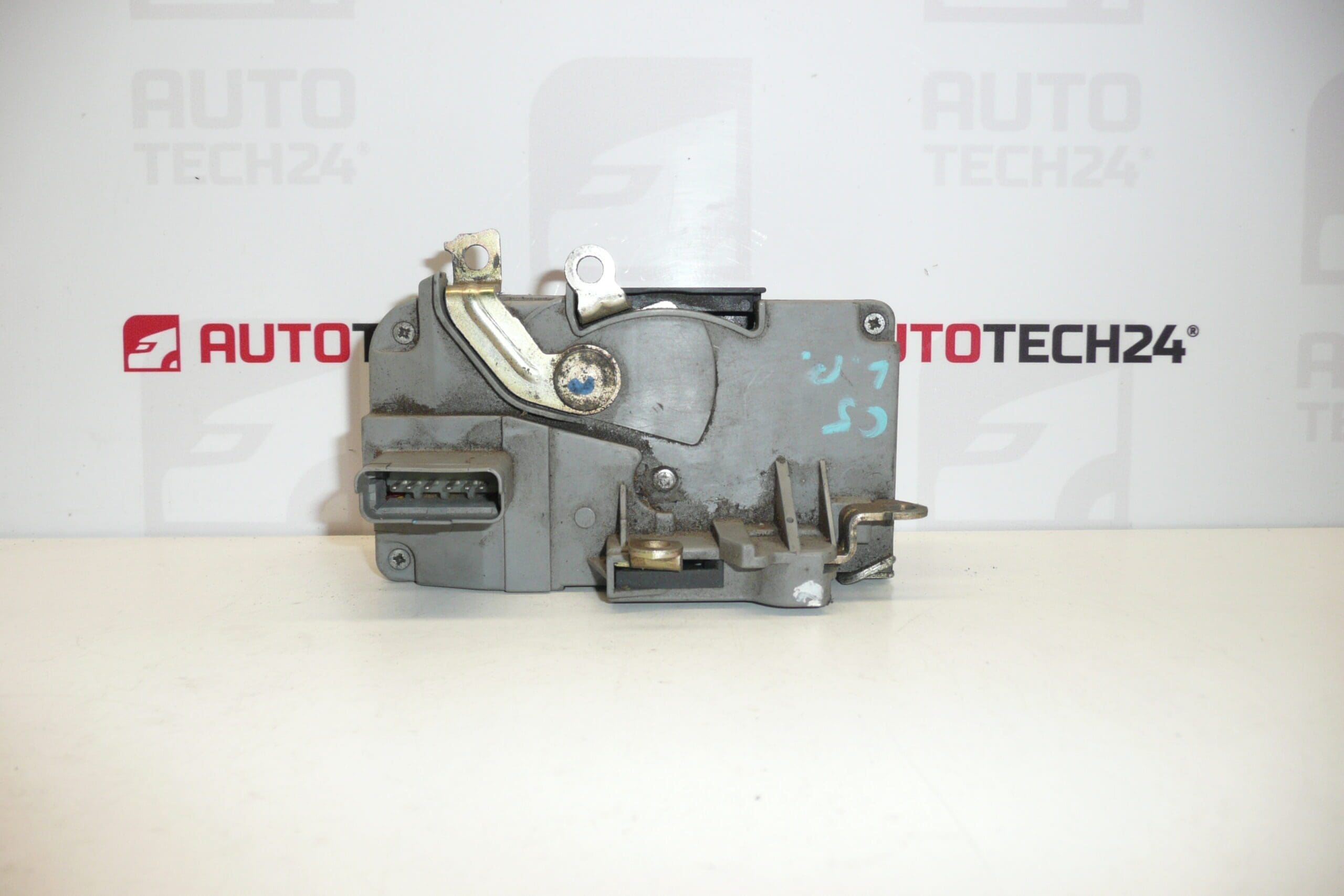

Central Locking Actuator For Left Front Door Citroën C5 I And II 9135J1

Description

Electric central locking actuator for the left front door of Citroën C5 I and II. Used part with functional warranty.

This left front door locking actuator is a direct-fit electric unit designed for Citroën C5 (first and second generation). It operates the door latch as part of the central locking system and is often searched for under the product code 9135J1. Suitable for professional workshops and do-it-yourself mechanics who need a reliable replacement part for restoring door locking and central locking function.

Technical Information

• Manufacturer: Citroën / Stellantis
• Model: Citroën C5 I and Citroën C5 II
• Product Codes: 9135J1
• Additional Numbers: 9135.J1, 9135J1 (as listed)

Function

The actuator is an electromechanical unit that locks and unlocks the left front door as part of the vehicle’s central locking system. It drives the latch mechanism, signals door-locked/unlocked position to the body control module via an internal microswitch, and interacts with remote locking and interior door handle/linkage. Proper operation ensures secure door closure and correct central-locking responses.

Compatibility

• Citroën C5 I (first generation)
• Citroën C5 II (second generation)

Replacement Procedure

1. Remove the door trim panel: detach clips and screws, carefully lift the panel to avoid breaking plastic fasteners.
2. Disconnect electrical connector to the actuator and any linked switches or speakers in the door.
3. Detach the linkage rods from the actuator (note orientation and clip positions for reassembly).
4. Unscrew the mounting bolts holding the actuator to the door shell and withdraw the unit from the latch assembly.
5. Install the replacement actuator: position into latch, secure mounting bolts, reconnect linkage rods and electrical connector.
6. Test locking/unlocking operations (remote and manual) before refitting the door trim. Verify door closed sensor and central locking response.
7. Reassemble the door trim and check function again to confirm correct installation.

Installation Recommendations

• Disconnect the negative battery terminal or ensure ignition is off to prevent accidental operation during work.
• Mark rod orientations and keep small clips organized; replacing bent or worn clips is recommended for secure linkage.
• Use a small amount of suitable grease on mechanical link points; avoid contaminating electrical connectors—use dielectric grease if moisture protection is desired.
• Test full locking cycle and door-ajar detection before refitting the door trim to save rework time.
• Inspect door seals and drainage holes; water ingress is a common contributor to premature actuator failure.

Common Failure Causes

Actuators most often fail due to moisture ingress and corrosion, worn plastic gears or internal mechanical parts, motor burnout from repeated strain, or broken linkage clips. Symptoms include intermittent locking, noisy operation, inability to lock/unlock the door, or the door being reported as open by the vehicle electronics. Failure likelihood increases with age, exposure to wet environments, and mechanical wear.

Search Tip: For faster results, customers frequently look up this part by code 9135J1. This listing is for the left front door actuator compatible with Citroën C5 I and II models.
