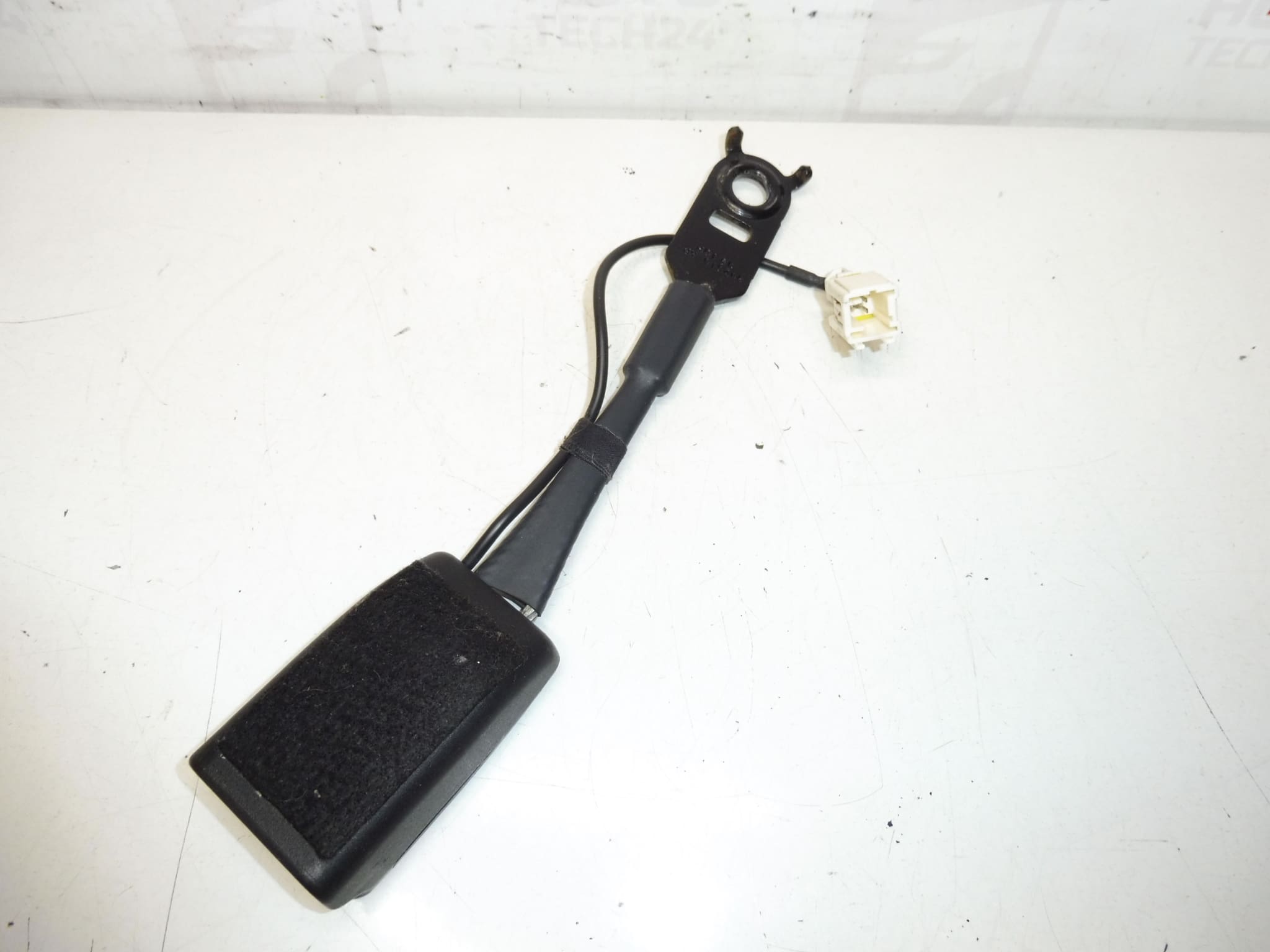

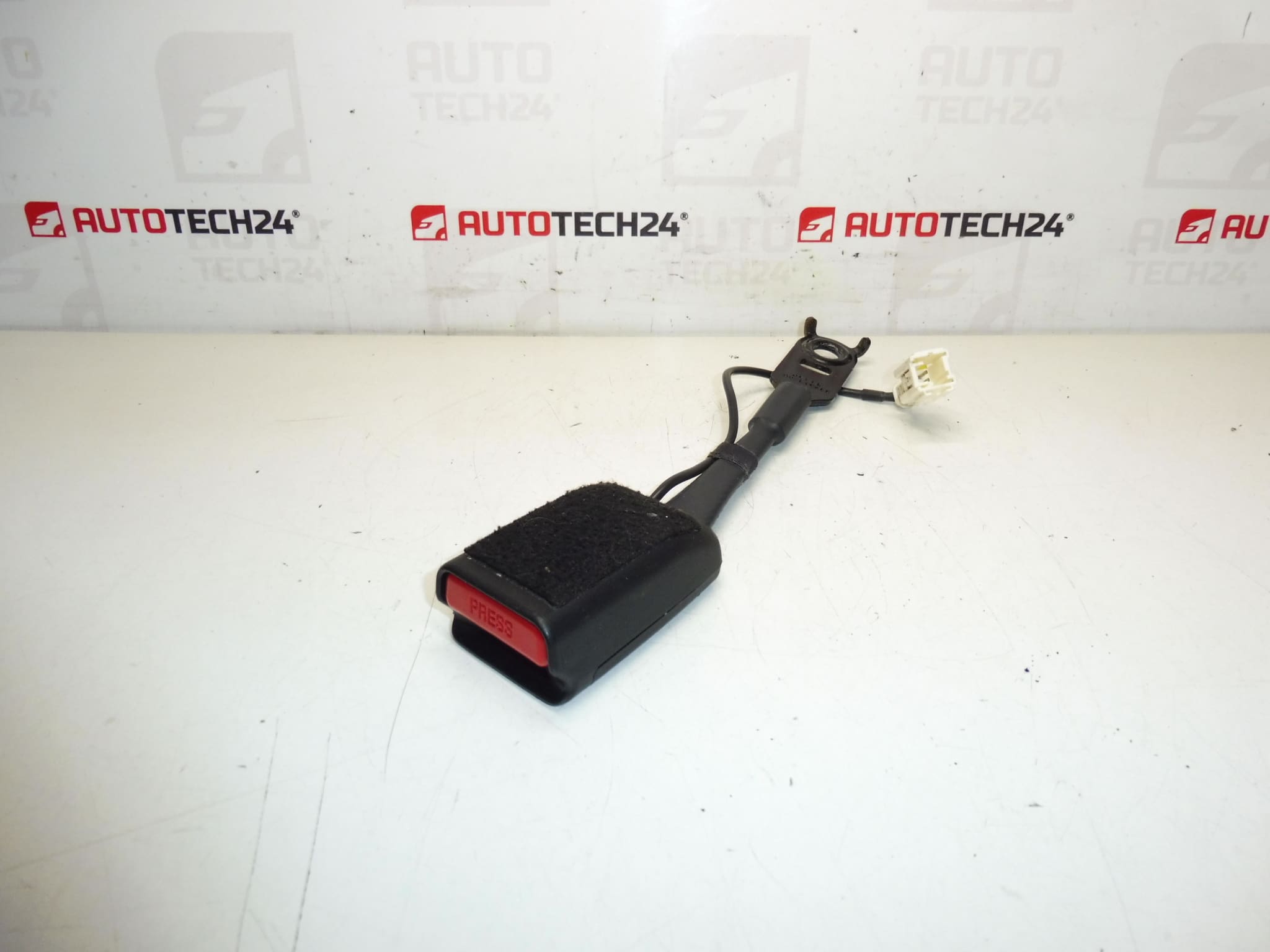

Seat belt lock holder for Citroen C4 II and DS4 cars
Version FXX – BLACK WITH ALARM
Part description
This used waistband holder / seat belt lock holder is designed for Citroen C4 II and DS4 cars. It is a part of the vehicle’s interior that is important for the correct function of fastening the seat belt and signaling its use. The version FXX – black with alarm corresponds to the variant with signaling function.
The part is suitable for replacement after mechanical damage, wear or non-functioning belt lock. When looking for the right piece, it is especially important to match the product numbers and the design of the connector or the color variant.
Technical information
- Manufacturer: Stellantis Citroen Peugeot
- Model: Citroen C4 II, DS4
- Other numbers: 96748384XT, 8976R0
Product codes
Product codes: 96748384XT, 8976R0
Installation recommendations
Generally/typically for this type of part, the exact replacement procedure may vary depending on the specific design of the vehicle’s interior. For the seat belt lock holder, it is important to carefully compare the electrical connection, part shape and attachment method with the old piece.
1) Before assembly
- Check that product numbers 96748384XT and 8976R0 match.
- Compare the color and design of the part, here FXX – black with alarm.
- Check the condition of the belt lock, the mechanical function of the latch and the overall condition of the plastic and metal parts.
- Check the electrical connector and wiring for damage, fraying, or oxidation.
- Before starting work, it is advisable to disconnect the battery, especially if the part is connected to signaling in the interior.
2) Necessary tools and materials
- regular set of hand tools
- tools for dismantling interior plastics
- suitable keys or extensions according to the type of attachment
- clean cloth
- preparation for cleaning contacts, if needed
3) Step-by-step assembly procedure
- Secure the vehicle against movement and prepare a working space in the interior.
- Disconnect the battery and wait a reasonable time before touching electrically connected parts.
- Remove the covers and upholstery that prevent access to the belt lock holder.
- Carefully disconnect the signaling electrical connector if the part is equipped with one.
- Unfasten the original bracket and remove the old part.
- Compare the old and new piece – shape, length, attachment, connector and lock design.
- Clean the mounting surface and check the mounting area for dirt or damage.
- Place the new holder in its original place and align its position correctly.
- Connect the electrical connector so that the connection is firm and without straining the wiring.
- Tighten the fastening in a way that corresponds to the vehicle design and the type of connection.
- Reinstall all removed covers and interior parts.
- Connect the battery and perform a basic function check.
-
4) Post-assembly checks and test drive/function verification
- Try putting the seat belt on and off repeatedly.
- Verify that the lock holds the belt properly and the release works smoothly.
- Check the belt signaling function if it is part of the equipment of this version.
- During a short test drive, observe for unusual sounds, play or error messages related to the interior equipment.
5) The most common assembly mistakes + how to avoid them
- Conversion of part design – always compare part numbers, color and signaling type.
- Damage to the connector or wiring – disconnect and connect the connector without force.
- Incorrect mounting of the holder – check the position of the part before final tightening.
- Assembly without checking the function of the latch – check the mechanical function several times before fully assembling the interior.
- normal mechanical wear from everyday use
- severe strain or jerky handling when fastening and unfastening the belt
- dirt in the lock mechanism
- damage to the electrical part of the signaling or connector
- consequences of an accident or a sudden load on the security system
- cracking of plastic parts due to the age of the material
